Deuterated compounds are widely used in pharmaceutical research, isotope labeling and the synthesis of high-value chemical intermediates. However, conventional batch deuterium-exchange processes can involve long reaction times and mass-transfer limitations, particularly in multiphase systems. Continuous flow provides an alternative process-development approach by combining efficient mass transfer with controlled residence time, temperature and flow conditions in a compact reaction environment.

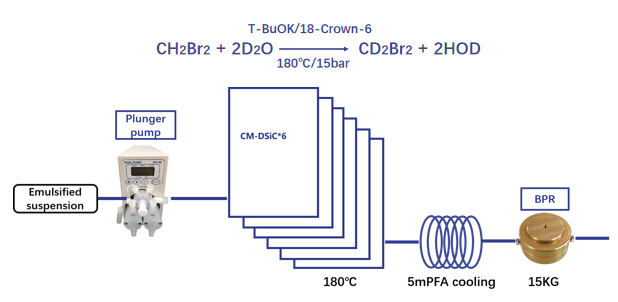

Figure 1. Continuous-flow process development for dibromomethane-d₂ deuterium exchange.

Dibromomethane-d₂ Process Optimization

Using the Laryee CM-D continuous-flow platform, a deuterium-exchange process for dibromomethane-d₂ was developed and optimized using dibromomethane and deuterium oxide under continuous-flow conditions.

In the supplied process data, the time required to reach the deuteration endpoint was reduced from 1,440 minutes in the batch process to 20 minutes under the optimized continuous-flow conditions. The comparison also showed high deuterium incorporation across repeated exchange steps; in the fourth deuteration step, the reported values were 96.88% for the batch process and 97.92% for the continuous-flow process.

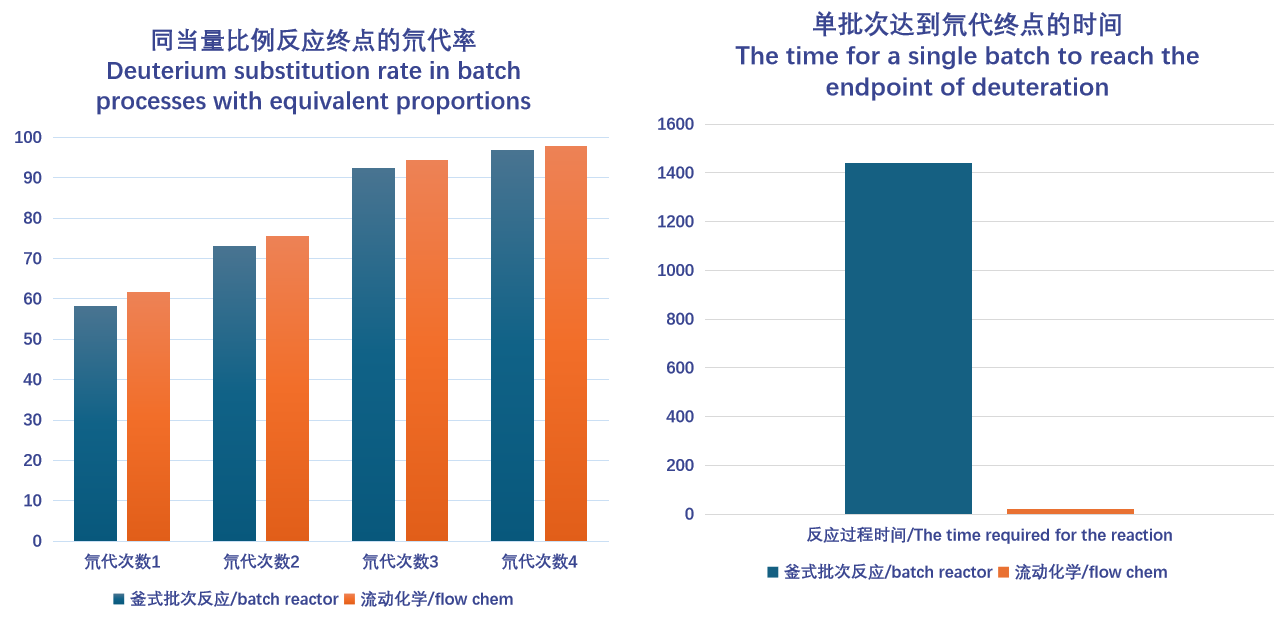

Figure 2. Comparison of batch and continuous-flow processes in reaction time and deuterium incorporation.

What Continuous Flow Changes

The process comparison highlights the role of intensified mass transfer in continuous-flow deuterium exchange. Microchannel operation increases interfacial contact between phases, helping accelerate exchange while allowing key operating conditions to be controlled continuously.

For process development, this combination of efficient mass transfer and controlled residence time provides a practical basis for optimizing reaction conditions and evaluating subsequent scale-up strategies.

Watch the Continuous-Flow Deuteration Process

The video below provides a visual introduction to the continuous-flow deuteration application and the CM-D platform used for process development.

【YouTube URL: https://www.youtube.com/watch?v=wFHp5taB1eY】

From Process Development to Scale-Up

The dibromomethane-d₂ case demonstrates how continuous-flow engineering can be applied to isotope-exchange process development. Rather than treating the reactor as a standalone instrument, the process is developed around the chemistry, operating conditions and required throughput.

Laryee provides modular continuous-flow systems and application support from laboratory process development toward pilot-scale evaluation. The CM-D platform can be configured around different reaction requirements, providing a flexible basis for developing and optimizing continuous-flow processes.

【FlowChem Reactor Development Production System CM-D100】

Discuss Your Continuous-Flow Application

If you are evaluating a deuteration, isotope-exchange or other batch process for continuous-flow development, Laryee can help review the reaction requirements and identify a suitable reactor and system configuration.
