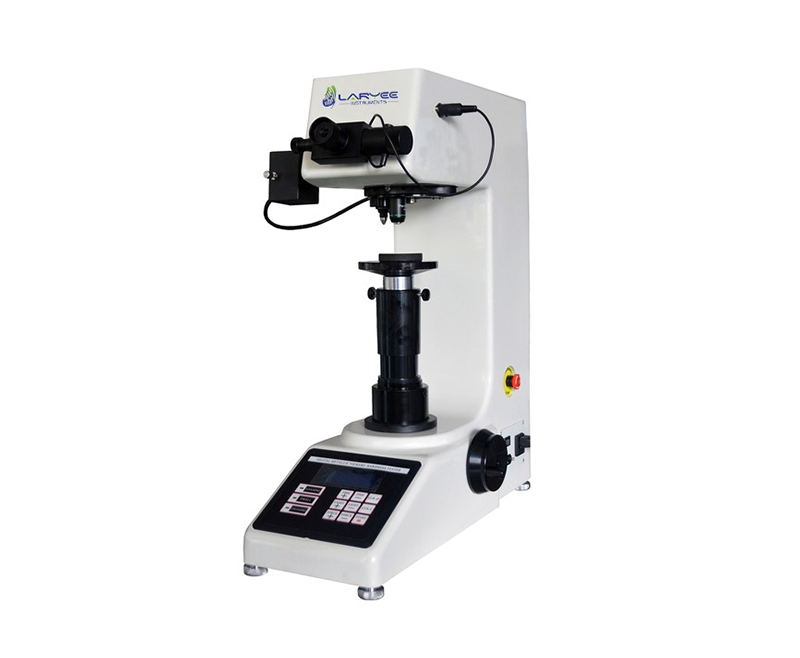

Digital Vickers Hardness Tester With Motorzied Turret

Model: HVS-10Z/50Z

Application:

Digital Vickers hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. It adopts load cell control system, improves the precision Of the test force and the repeatability and stability of the indicating value. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of theindentation, it can directly shows the test force, indentation length, dwell time, test numbers, conversion scale, date and time. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen. It can be equipped with LCD video measuring device and CCD image automatic measuring system.

Inquire Now Next Product

Specification:

Model		HVS-10Z	HVS-50Z
Test Force	kgf	0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf,10kgf	0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf,10kgf, 20kgf, 30kgf, 50kgf
	N	2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N	4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N
Test Range		1HV~2967HV
Hardness Resolution		0.1HV
Loading Method		Automatic (Loading/Dwell/Unloading)
Lens/indenter switch		Motorized turret
Data Output		Built-in Printer，RS232 Interface
Eyepiece		10^×Digital Measuring Eyepiece
Objective		10^×，40^×	10^×，20^×
Total Magnification		100^×，400^×	100^×，200^×
Effective Field of View		10^×：800μm，40^×：200μm	10^×：800μm，20^×：400μm
Dwell Time		0~60s
Light Source		Halogen Lamp
Max. Height of Specimen		170mm	185mm
Throat		130mm
Power Supply		AC220V，50Hz
Dimension		530×280×630mm，Packing Dimension: 620×450×760mm
Weight		Net Weight: 35kg，Gross Weight: 47kg
