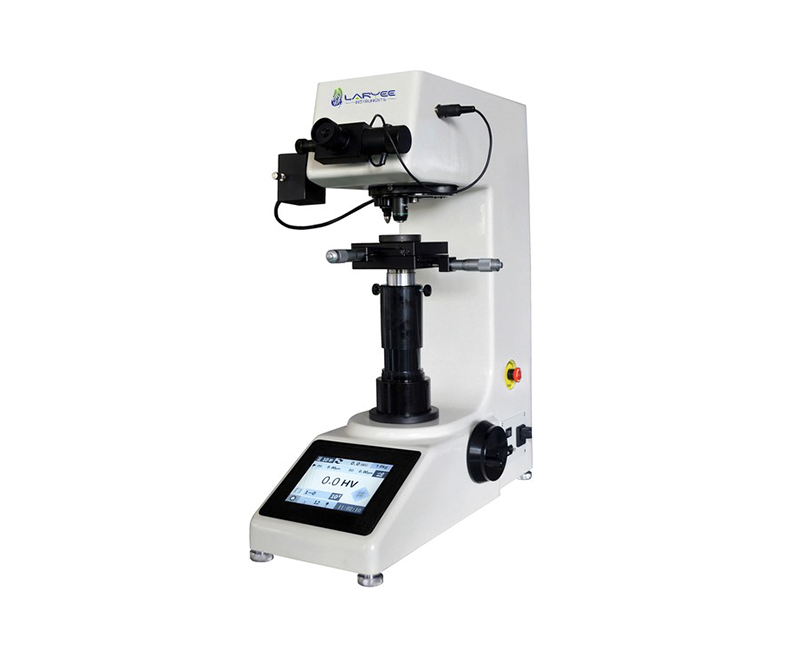

Digital Vickers Hardness Tester with Motorized Turret

Model: HVM10/50

Introduction:

Vicker’s hardness tester is a simple instrument to test the hardness value of metalsaccording to Vicker’s Principle ISO 6507 and ASTM E92.Also can measure the diagonal distance of the indentation, the testing load. It is widely used in metallurgy, forging, casting, hardness steel and nonferrous metals industries, as well as in the laboratories, universities, college and scientific research institutes.

Inquire Now

Video:

Specification:

Model	HVM-10	HVM-50
Test Load(N)	2.942/4.903/9.807/19.61/24.52 /29.42/49.03/98.07	9.807/19.61/24.52/29.42/49.03/98.07 /196.1/294.2/490.3
Test Load(Kgf)	0.3/0.5/1/2/2.5/3/5/10	1/2/2.5/3/5/10/20/30/50
Carriage Control	Automatic(loading/dwell-time/unloading)
Dwell Time	0~60 seconds
Magnification Of Microscope	100X, 400X		100X, 200X
Min. Measruing Unit Of Microscope	10×：0.25μm，40×：0.06μm		10×：0.25μm，20×：0.13μm
Testing Range	1HV-2967HV
Turret	Motorized
Dimension of XY table	Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Max. Height Of Specimen	165mm
Max. Depth Of Specimen	130mm
