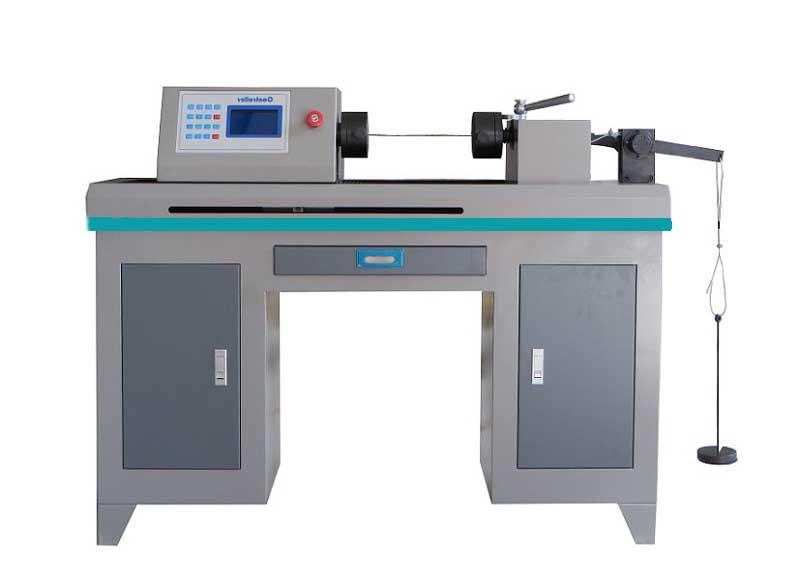

Model: TE1201/1203/1210
Application:
The series of test machine mainly used to test the capacity of bearing deformation of the metal wires and other wire ropes whose diameter are Ø6～Ø20mm during the reversing. The test can show the surface defects of wire during the test process,It confirms to standard ISO7800, ISO 9649.
Specification:
Model | TE1201 | TE1203 | TE1210 |
Range of specimen diameter (mm) | Ø0.3mm—Ø1mm | Ø1mm—Ø3mm | Ø3mm—Ø10mm |
Test speed（r/min） | 60,90,120 | 60,90,120 | 30,60 |
Max distance between two grips(mm) | 100-300 | 100-300 | 300-500 |
Dimension(mm) | 1220x480x1250 | 1220x480x1250 | 1420x480x1250 |
Maximum reading rotation circle | 999.9, The number of test circle can be automatic showing after specimen fracturing | ||
Power Supply | 3P, AC380V,50Hz | ||
