Model: TD1220
Application

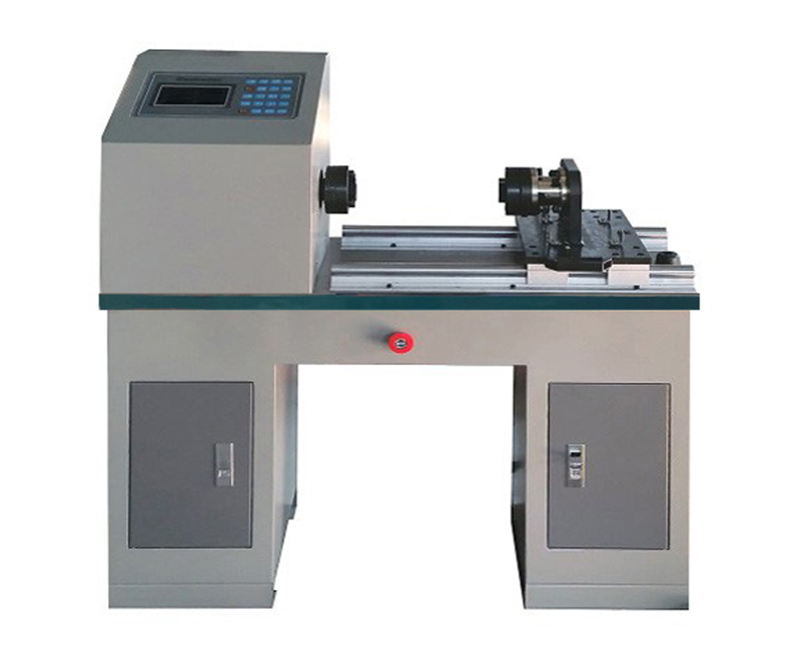

Digital Electronic Torsion Testing Machine is mainly used to test the twist angle, torque and torsion strength. It’s rotates loading through servo motor, torque and twist angle detection uses the high-precision torque sensor and a photoelectric encoder; LCD screen can display the test torsion angle, torsional speed, torque and the peak of torque and so on. It has print function. It is a perfect testing instrument which is suitable for project quality testing section,universities and colleges, research institution and industrial and mining enterprise.
Specification:
Model | TD1220 |
Maximum torque of test (Nm) | 200 (4-200N.M) |
Relative error of torque | ≤±1% |
Range of torsion angle measure | 0～9999.9° |
Relative error of torsion angle | ≤±1% |
Display of torsion angle | Minimum resolution 0.1° |
Display of torque | Minimum resolution 0.1N.m |
Maximum distance between two collets(mm) | 260 |
Range of reverse speed | 6～720°/min,Variable speed |
Precision of speed | ±1% |
Direction of test rotation | Bidirectional |
Power supply | 220V±10%, 50Hz |
Dimension | 950x350x900mm |
