Model: TE1405/1410/1420
Application

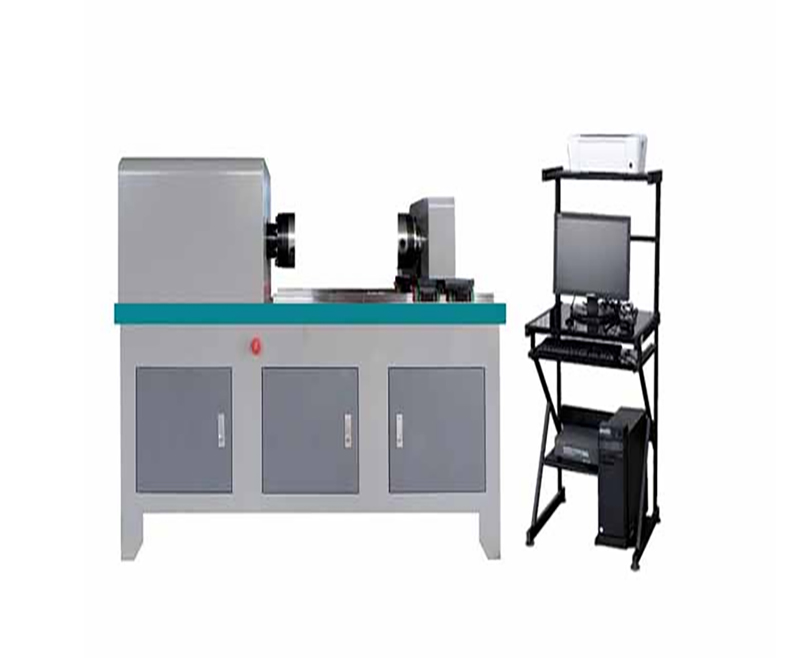

This is a perfect testing instrument which is suitable for project quality testing section, universities and colleges, research institution and industrial and mining enterprise.The loading system of this machine, controlled by computer, rotates load through alternating servo motor and cyclical gear reducer. Torque and twist angle detection uses the high-precision torque sensor and a photoelectric encoder; computer displays dynamically the curve of test torsion angle and torque, rate of loading, peak of power and so on.
Features:
1.Adopting a horizontal structure, the main structure adopts a frame casting structure, the fixture and main transmission shaft are quenched with high-quality alloy structural steel, which is treated with alloy structural steel quenching to ensure their service life. Different fixtures can be replaced according to different specimens
2. Using a planetary cycloidal pinwheel reducer for transmission, the lateral space can be manually adjusted within a range of 0mm to 500mm.
3. The machine uses a photoelectric encoder to collect the torsion angle of the test piece, The torque sensor collects the torque T of the sample. The computer screen displays the torque T and torsion angle of the specimen、Torque T - Torsion angle curve and torque T-time curve, etc. The system can set the twisting angle, or torque T, control the operation and shutdown of the system.
4. Computers collect real-time data, process data, and provide functions such as data storage, retrieval, statistics, and printing. Real time display, drawing curve (torque T - torsion angle curve, torque T-time t curve.
5. The test report is output in Word or Excel format. The experimental process can be simulated and reproduced. Multiple experimental curves can be stacked and compared, and printed out. It can be digitally zeroed and calibrated.
Specification:
Model | TE1405 | TE1410 | TE1420 |
Maximum torque of test (Nm) | 500 | 1000 | 2000 |
Testing range（Nm） | 5-500 | 10-1000 | 20-2000 |
Relative error of torque | ≤±0.5% | ||
Test torque measurement range | 1%~100%FS | ||
Torsion angle resolution | 0.05º | ||
Loading speed | 0.01～2rpm/min | ||
Range of reverse speed | 6～720º/min | ||
Maximum distance between two collets(mm) | 500 | ||
Power supply | AC220V,50Hz/60Hz | ||
Standard accessory
| Servo control system Digital data acquisition and processing card Torque sensor Standard levers for calibration Sample positioning flange One Lenovo computer One printer One set of dedicated software | ||
Optional accessory | Torque extensometer | ||
