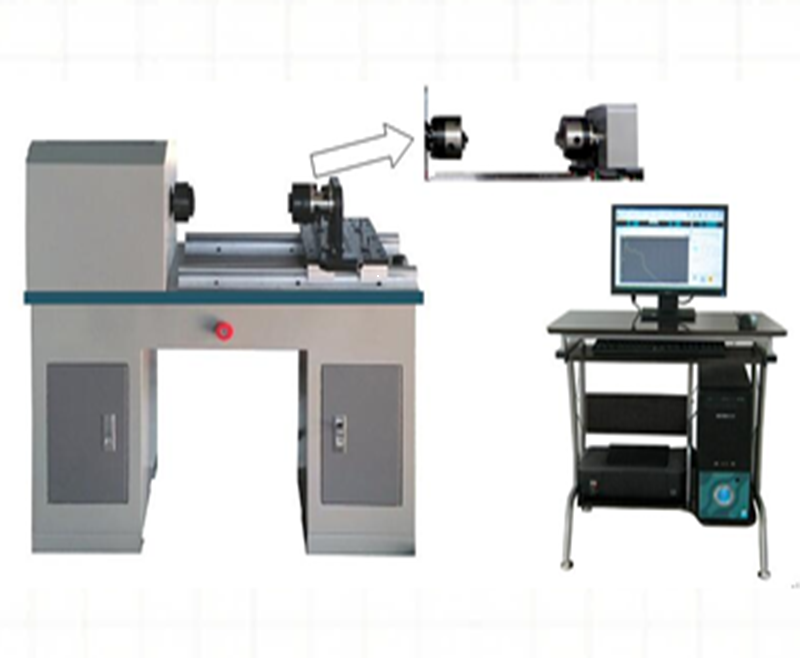

Computer Control Torsion Testing Machine

Model: TE1402

Application:

This is a perfect testing instrument which is suitable for project quality testing section, universities and colleges, research institution and industrial and mining enterprise.The loading system of this machine, controlled by computer, rotates load through alternating servo motor and cyclical gear reducer. Torque and twist angle detection uses the high-precision torque sensor and a photoelectric encoder; computer displays dynamically the curve of test torsion angle and torque, rate of loading, peak of power and so on.

Inquire Now Next Product

Specification:

Model	TE1402
Maximum torque of test (Nm)	200
Relative error of torque	≤±1%
Measuring Range of torsion angle	0～9999.9°
Relative error of torsion angle	≤±1%
Resolution of torsion angle	Minimum resolution 0.1°
Maximum distance between two collets(mm)	0-260mm
Torsion speed	3.6~540°/min, Variable speed
Accuracy of speed	±1%
Direction of test rotation	Forward rotation and reverse rotation
Power supply	220V±10%, 50Hz
Dimension	950x350x900mm

Standard Accessories

1. Host machine

2.Fully digital AC servo motor

3.AC Servo Driver

4.High-precision torque sensor 200Nm

5.Precision linear guide

6. Planetary reducer

7.DC test digital data acquisition and processing system

8.Computer control software

9. Computer

10.19-inch LCD monitor
