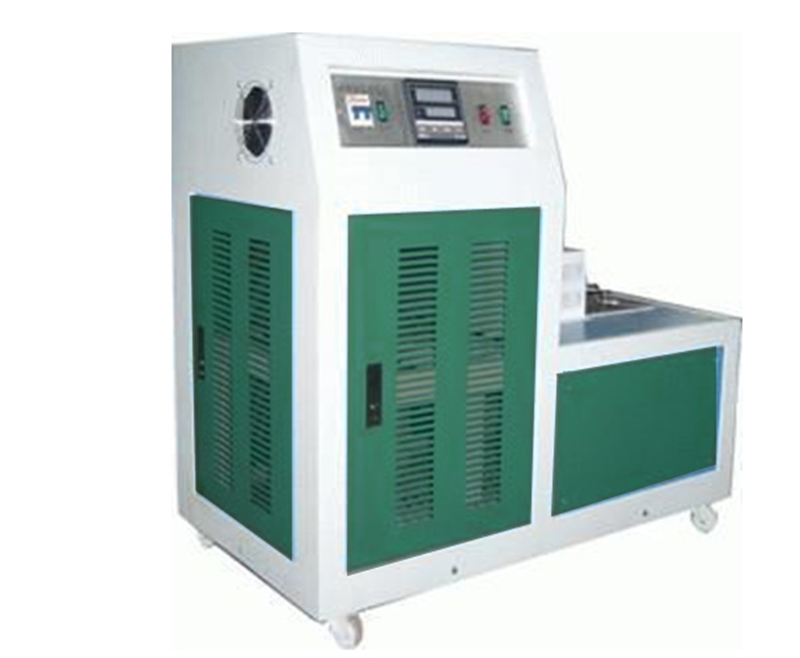

Model: Dwc Series
Application
1.This machine is used to the preparation of metal impact testing sample in the low temperature environment.
2.It adopts the compress cooling system in quickly cool down mode.
3.It is a convenient machine as using digital temperature indicator, controlled by the microprocessor and with system alarm function.
Standards
l ASTM E 23
l ISO 148
Key Specification:
Model | DWC40 | DWC60 | DWC80 | DWC100 |
Temperature | -40℃~R.T. | -60℃~R.T. | -80℃~R.T. | -100℃~R.T. |
Accuracy | ＜±0.5℃ | |||
Inner size(mm) | 120×120×80 | |||
Samples quantity | More than 60 pcs | |||
Cooling medium | Ethanol or other ice-free liquid | |||
Working voltage | 1 Phase, AC220V, 50Hz | |||
Power(KW) | 1.0 | 1.5 | 2.0 | 2.0 |
