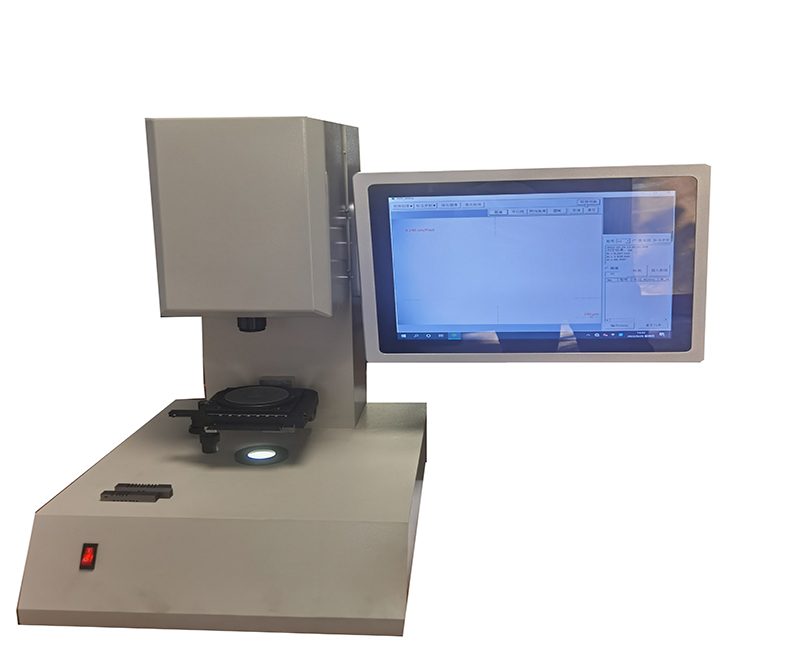

Impact Specimen Notch Projector

Model: NP500

Application:

The impact notch image measuring instrument is developed by our company based on the actual needs of our customers and in accordance with GB/T229-2010、 ISO 148-1 2009、ASTM E23、GB/T 8363-2007.The newly developed specialized equipment for processing and inspecting V-shaped and U-shaped notches, called the "fully automatic impact notch measuring instrument.For the Charpy V-notch impact test, due to the strict requirements for the V-notch of the specimen (with a notch depth of 2mm, a 45 ° angle, and a notch requirement of R0.25± 0.025mm), the qualification of the V-notch machining of the specimen becomes a key issue throughout the entire test process. If the machining quality of the notch is not qualified,
the test results are unreliable, especially for small changes in the R0.25mm notch (with a tolerance of only ± 0.025mm),which can cause a sharp jump in the test results, especially at the critical value of the test, resulting in two completely opposite results: product scrap or qualification. To ensure that the processed Charpy notch is qualified, the quality inspection of the notch processing is an important quality control measure. Currently, using optical projection magnification for inspection is a feasible and quality assured method. The impact notch image measuring instrument uses unique optical imaging technology to capture the V-shaped and shaped notch images of the tested impact specimen through a 10-megapixel camera and lens, which are then displayed on a computer monitor. The images are automatically captured and judged using specialized measurement software to accurately measure the dimensions of the pendulum impact V and U-shaped notches. It can automatically measure the angle, depth, and bottom radius of the gap.

Inquire Now

Features：

1. Measurement speed:
Only two parts are needed to measure the gap,
Step 1: Placing the sample on the sample stage (within the measurement field of view).
Step 2: Clicking the measurement button, and the measurement result will be obtained instantly; 60 samples
can be measured per minute;
2. Accurate measurement:
Automatic capture, automatic measurement, unaffected by human factors, measuring the angle, depth,
bottom radius, and height of the gap in one go.
3. Automatic judgment:
Automatically make judgments based on GB、ISO、ASTM、Enterprise standards and customized standards are used to automatically determine measurement results。

4. Modular design
Modular design allows users to customize measurement error ranges, compare measured data with standard
data, and more.
5. Measurement technology
Using pixel resolution to accurately capture the edge of the notch, without the need to place the sample horizontally.
6. Can import images for secondary measurement, used for arbitration or querying results with disputes, and
remeasurement;
7. Can accurately measure the depth, angle, bottom radius, and height of the notch on the pendulum
specimen
8. Can save sample analysis results
9. The computer automatically calculates the analysis results of the sample, and the measurement data can be sent in JPG format WORD、 EXCLE。

Specification:

Model	NP500
Field of view range	7mm×5mm
Optical system	Specialized parallel backlight source
Power Supply	220V 50Hz 450W
Dimension	200mm×300mm×350mm

Products Categories

Our Knowledgeable Team is Here to Help

Our team is composed of experienced experts who are eager to help you find a solution that suits your business.

Get Instant Quote +

Related Products

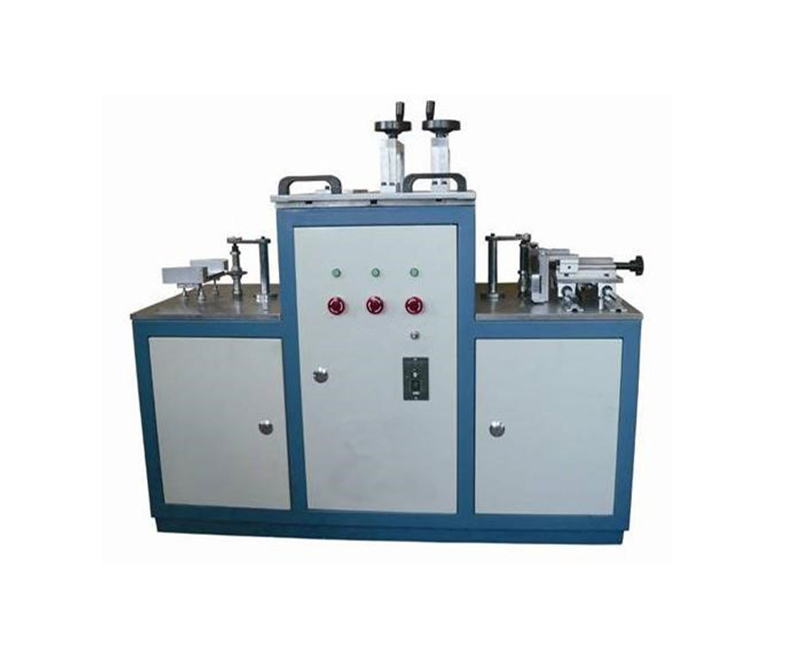

Automatic Universal Sample Machine LYUS-250

Model:

The machine is used to manufacture the testing sample for tensile test of all kinds of non-metal materials just like rubber, plastic, PVC, organic glass and so on.The sample according to the standards of ASTM, can be used to do the test of tensile, compression, impact, heat etc

View More +
Sample Punch Machine LYSP-25

Model:

The machine is used to manufacture the testing sample for tensile. It can punch the soft non-metal materials just like rubber, plastic, film and so on. With different punch knife, it can make out all kinds shape of sample to test.

View More +

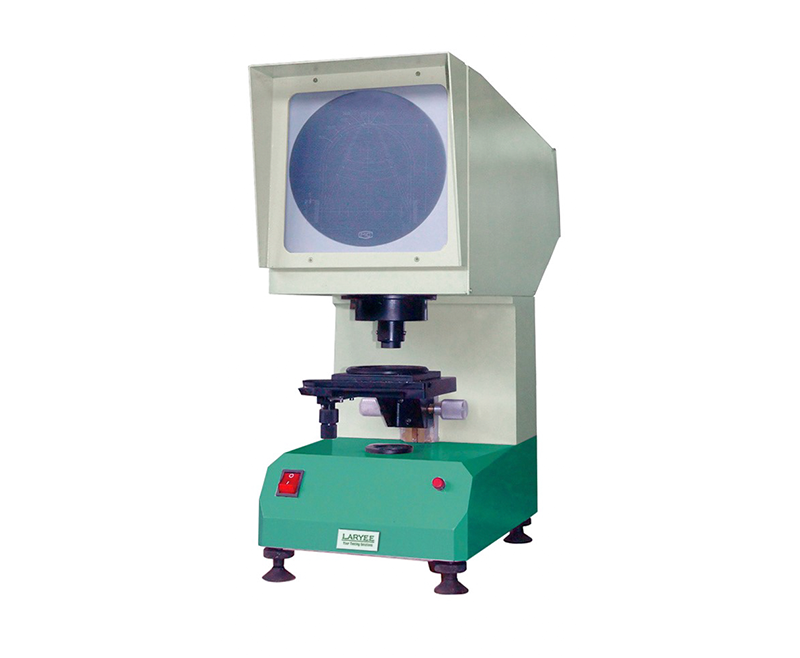

Impact Specimen Notch Projector NP-200
