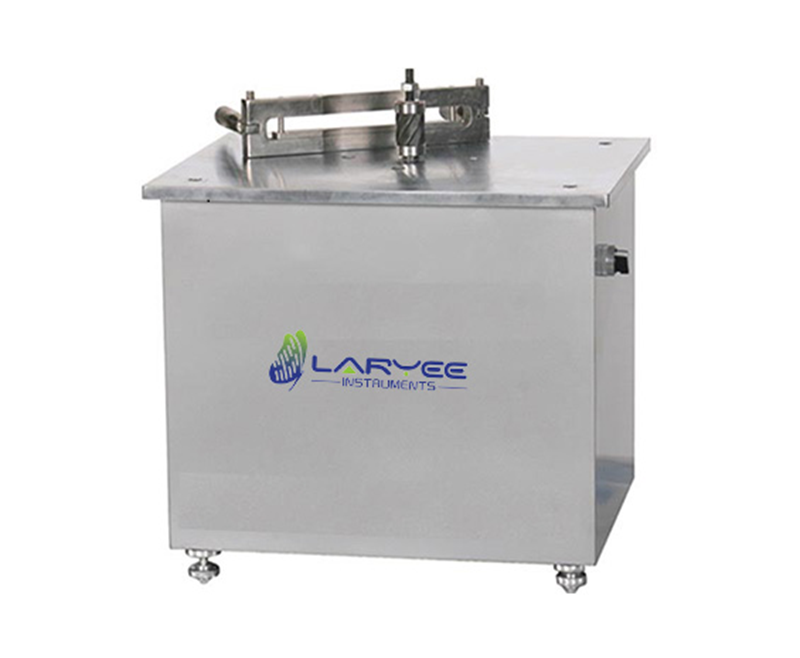

Model: LYDS-250
Application
The machine is used to manufacture the testing sample for tensile test of all kinds of non-metal materials just like rubber, plastic, PVC, organic glass and so on.The shape of the sample is standard dumbbell type according to the former. It uses motor to drive the machine knife.Easily and fast making the high precision for factory and laboratory.
Related Standards:
STANDARDS | EN ISO 527.3 ASTM D638 ASTM D412 |
Note:This tester can conform to but not limit to all the standards above, for more standards conformance, please contact us
Features:
wInternationally accepted testing method
wSimple operation by manual
Key Specification:
wMilling cutter diameter : φ27mm
wCutter revolution: 2800r／min
wMax machine thickness of sample: 1-14mm
wMax length of sample: 250mm
wWidth of sample: 20-50mm
wWorking voltage: 3 phase, 380V±10% , 50Hz

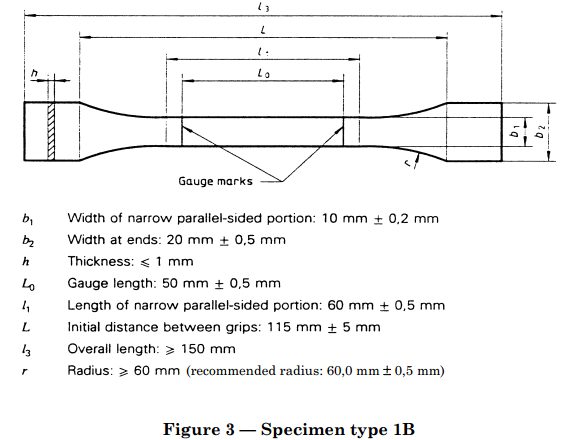

Note: Sample mould 1 set (type 1B EN ISO 527.3)
Other models need to be customized
Our Knowledgeable Team is Here to Help
Our team is composed of experienced experts who are eager to help you find a solution that suits your business.
Related Products

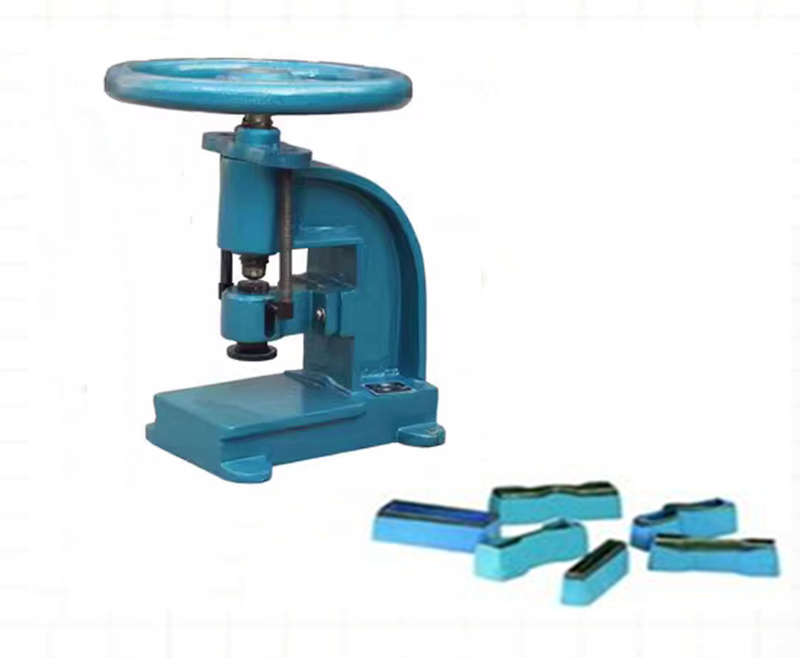

Model:
