Model: LYUS-250
Application

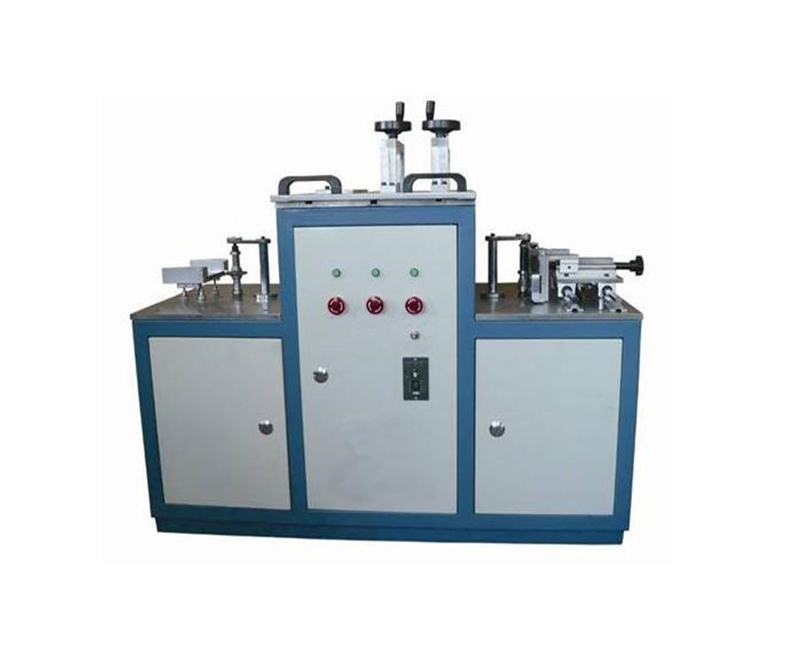

LYUS-250 mainly consists of three parts, machine top for cut and milling, left part for dumbbell shaping and right side for notching of impact. The machine is used to manufacture the testing sample for tensile test of all kinds of non-metal materials just like rubber, plastic, PVC, organic glass and so on.The sample according to the standards of ASTM, can be used to do the test of tensile, compression, impact, heat etc.The machine has the function of milling the sample surface, camber profile and cutting sample automatically.
Features
wBench top frame design, stable and convenient to operate
wThe sample shape can be determined either the fomer or the milling cutter
wMachine samples automatically, easy, fast and high accuracy
wCustomers can custom-tailor the water cooling system for need
Key Specification:
Cut and milling part:
wRated power : 370W
wRated voltage: 380V
wMilling cutter rotate speed: 2800 r/min
wSurface milling stroke: 120mm
wDimension of worktable surface: 500×380mm
wMilling cutter parameter: Mode A: Φ63mm, 45º±30', R=0.25±0.05mm
Mode B: Φ63mm, 45º±30', R=1.00±0.05mm
Dumbbell shaping part:
wRated power : 370W
wRated voltage: 380V
wMilling cutter rotate speed: 2800 r/min
wMilling cutter diameter: φ27mm
wSurface milling stroke: 300mm
wCompress stroke: 25mm
wDimension of worktable surface: 500×380mm
Note: Standard accessory: ISO 527-2-2012 Sample 1B
Notching of impact part:
wRated power : 750W
wRated voltage: 380V
wMilling cutter rotate speed: 900 r/min
wDiameter of milling cutter: φ250mm
wThickness of milling cutter: 3mm
wMilling cutter cutting height: 45mm
wCutting stroke: 260mm
wDimension of worktable surface:650×460mm
