Digital Shore Hardness

Model: HS-A; HS-AO; HS-D

Application

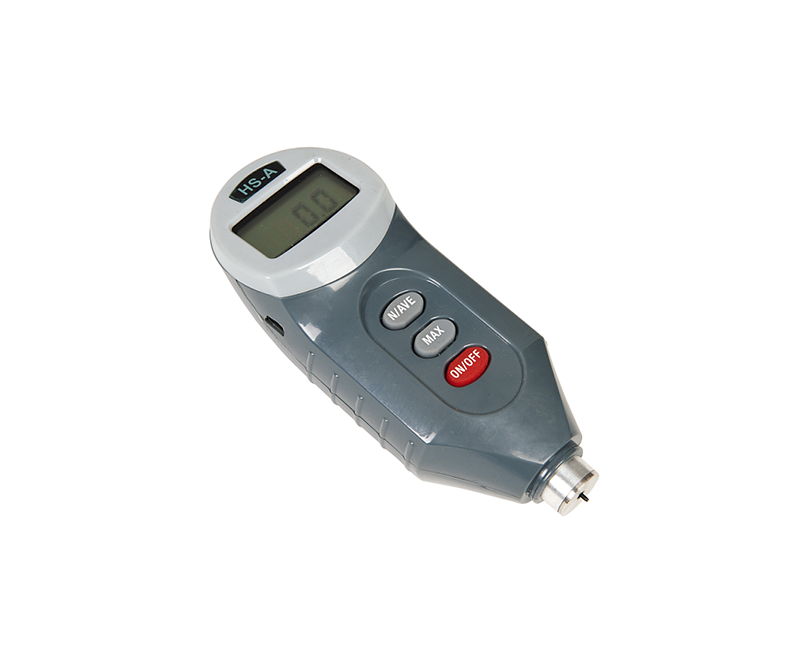

HS series shore hardness tester is an advanced integrated digital display type of portable tester that can be used to determine the shore hardness value of rubber and plastic products, it has the advantages of compact structure, accurate measurement value, convenient carrying, light weight and easy operation etc. It is the ideal measuring instrument for using on the spot. According to Standards: DIN 53505, ASTM D 2240, ISO 7619, JIS K7215

Inquire Now

Features

l With max value, average value latch automatic computation and under-voltage alarm function.

l With interface to computer to achieve data communication.

l With automatic shutdown function.

l After equip with operation stand, can have a more higher precision measurement.

Specifications

Description	HS-A	HS-AO	HS-D
Measuring Range	0-100HA	0-100AO	0-100HD
resolution	0.1HA	0.1AO	0.1HD
Accuracy	≤±1HA (20-90HA)	≤±1AO (20-90AO)	≤±1HD (20-90HD)
Environment	0-40℃
Power	3×1.55V button cell battery/4.5V AC to DC power adapter
Dimensions	142×52×42mm
Weight	About 300g
Application	It is suitable for plastic, synthetic rubber, seals, tires, rubber roller, rubber hose/belt, wire and cable, shock absorber, etc.	It is suitable for rubbers in the low-hardness range and cellular rubbers, etc.	It is suitable for hard plastic, thermoplastic, hard resin, nylon, and organic glass, hard rubber, and anti-corrosion coating materials, flame retardant materials, paint, etc.

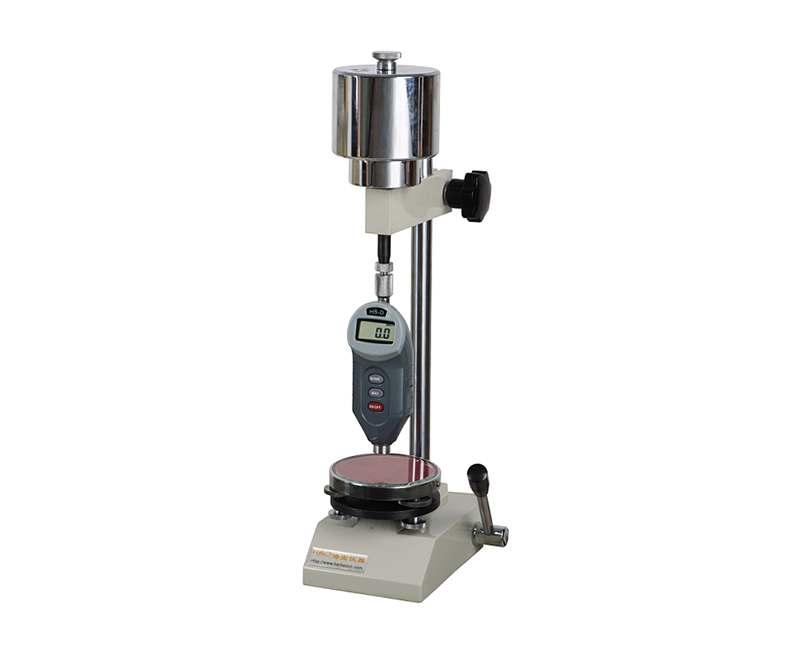

Operation Stands

l Better precision is obtained by using a stand with a weight centred on the axis of the indentor to apply the pressure foot to the test piece.

l This stand is composed of has a handle, weight, adjustable glass workbench, holding device and a lifting column, which can easily and accurately measure Shore hardness.

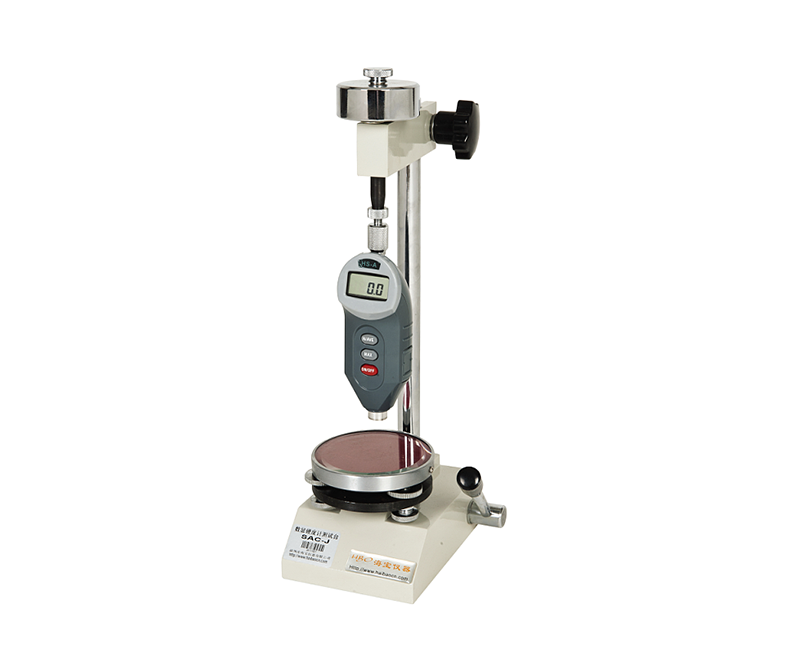

l SAC-J is suitable for two kinds Shore hardness tester for HS-A and HS-AO.

l SD-J is suitable for HS-D Shore hardness tester.
