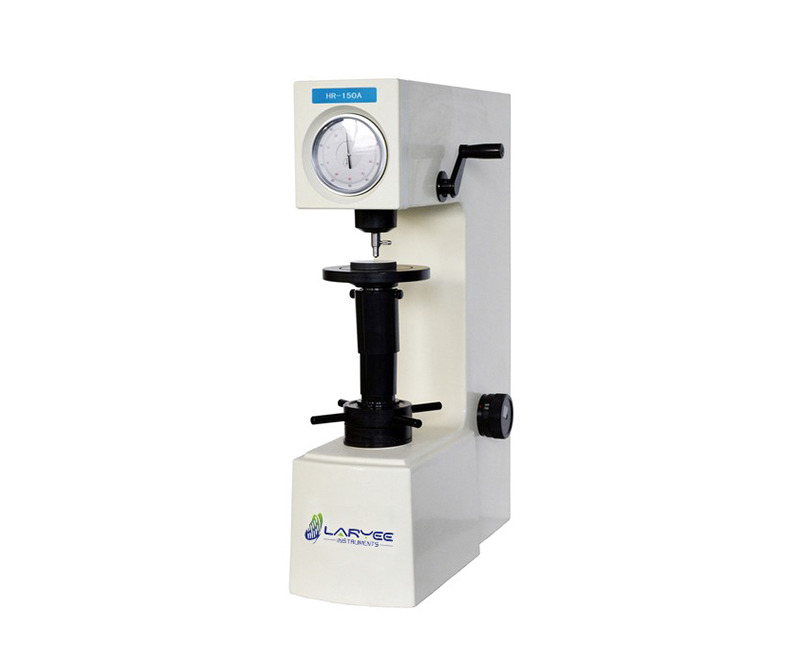

Rockwell Hardness Tester

Model: HR-150A

Introduction:

Rockwell hardness tester is a simple instrument to test the Rockwell hardness value of hard metals, carburized steels, quenched steels, hard cast irons, mild steels, Al-alloys, Cu-alloys and melleable irons according to Rockwell Principle conforms to ISO 6508 and ASTM E18. It measures the depth difference between the primary and testing load and convert the depth difference to the hardness value. It is widely used for quality testing section, university and college, research institution and industrial laboratory.

Inquire Now Next Product

Video:

Specification:

Model	HR-150A
Initial Test Force	10kgf (98.07N)
Total Test Force	60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter	Diamond Rockwell Indenter,ф1.588mmBall Indenter
Loading Method	Manual
Hardness Reading	Dial
Hardness Resolution	0.5HR
Max. Height of Specimen	185mm
Throat	165mm
Execute Standard	ISO 6508, ASTM E18, JIS Z2245, GB/T 230.2
Dimension	520×245×700mm, Packing Dimension: 650×370×950mm
Weight	Net Weight: 78kg，Gross Weight: 100kg
