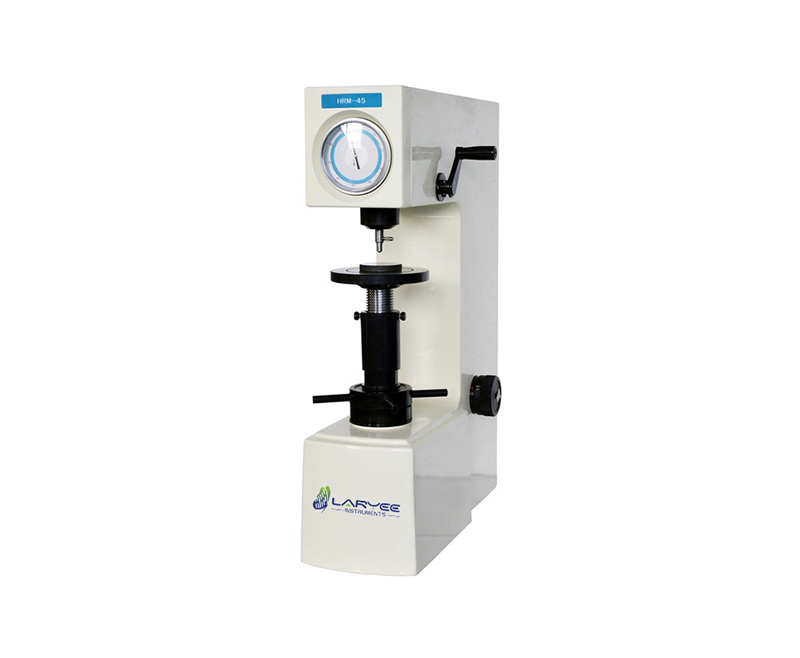

Rockwell Hardness Tester

Model: HRM-45

Introduction

Rockwell hardness test is a simple instrument to test the hardness value of hard metals, carburized steels, quenched steels, hard cast irons, mild steels, Al-alloys, Cu-alloys and malleable irons according to Rockwell Principle according to ISO 6508 and ASTM E18. It measures the depth difference between the primary and testing load and convert the depth difference to the hardness value. These machines can be operated semi-automatically. They are essential testing instruments for quality testing section, university and college,research institution and industrial laboratory.

Inquire Now Next Product

Characters

Model HRM-45 is superficial Rockwell test scales N & T (15/30/45kgf) with dial indicator and hand control loading.

Specifications

Model	HRM-45
Preliminary test force	29.4N (3Kgf)
Total test force	147N(15Kgf), 294N(30Kgf), 441N(45Kgf
Loading Method	Manual
Hardness indication	Dial
Hardness Resolution	0.5HR
Max height of specimens	185 mm
Throat	165mm
Dimension(D× W×H)（mm）	520×215×700
Net weight	80Kg
Power supply	No need
Standard accessories	Diamond Rockwell indenter (1), Ø1.5875mm hardness ball indenter(1), Standard Superficial Rockwell Hardness Block(3)
