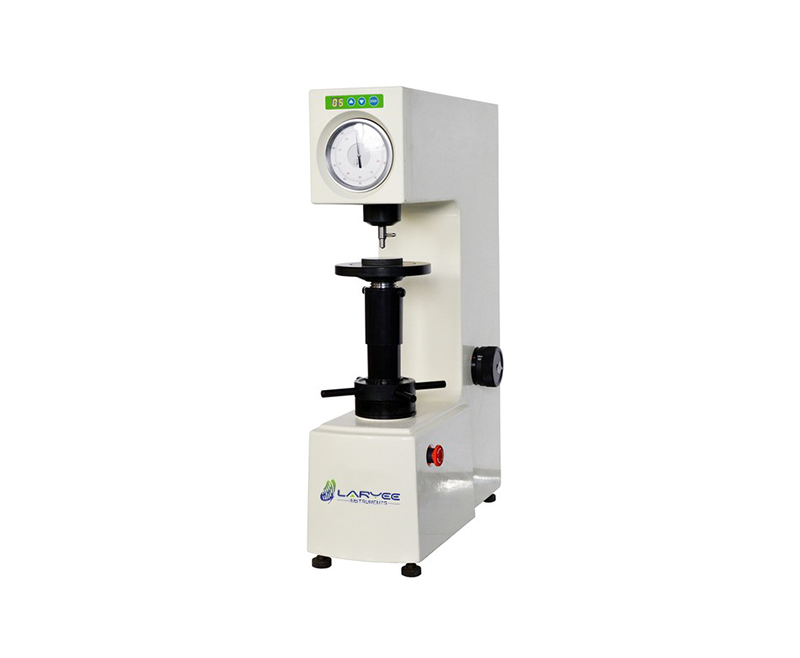

Rockwell Hardness Tester

Model: HR-150DT

Introduction

Rockwell hardness tester is a simple instrument to test the hardness value of hard metals, carburized steels, quenched steels, hard cast irons, mild steels, Al-alloys, Cu-alloys and malleable irons according to Rockwell Principle according to ISO 6508 and ASTM E18. It measures the depth difference between the primary and testing load and convert the depth difference to the hardness value. These machines can be operated semi-automatically. They are essential testing instruments for quality testing section, university and college, research institution and industrial laboratory

Inquire Now Next Product

Characters

Model HR-150DT is Rockwell test with scales A-B-C (60/100/150kgf ) with dial indicator and motor control loading.

Specification:

Model	HR-150DT
Preliminary test force	98N (10Kgf)
Total test force	588N(60Kgf) , 980N(100Kgf) , 1470N(150Kgf)
Loading Method	Automatic (Loading/Dwell/Unloading)
Total test force dwell time	2-60S
Hardness indication	Dial
Max height of specimens	185 mm
Throat	165mm
Dimension(D× W×H)（mm）	520×215×700
Net weight	80Kg
Power supply	AC220V 50/60HZ
Standard accessories	Diamond Rockwell indenter (1), Ø1.5875mm hardness ball indenter(1), Standard Rockwell hardness block (3),
