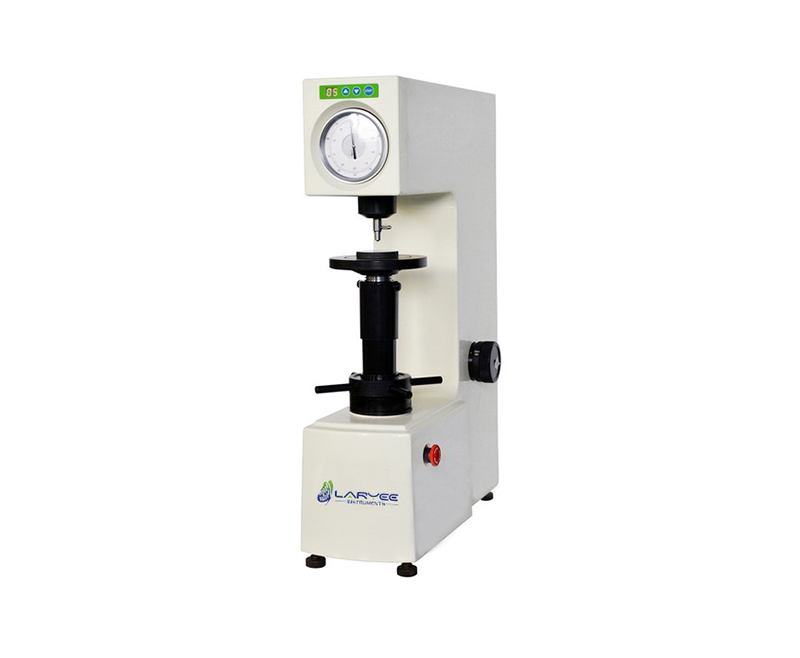

Plastics Rockwell Hardness Tester

Model: XHR-150

Introduction

XHR-150 Plastics Rockwell hardness tester adopts the mechanism of automatic loading and unloading of the test force, the test force is regulated by the load-change hand wheel. It can select the dwell time and is very easy to use. Besides setting zero to dial, there is no man-made error. The instrument has high sensitivity and stability.

Inquire Now Next Product

Application range:

Suitable for hard plastics, hard rubbers, aluminum, tin, copper, soft steel, synthetic resins and fricative materials etc.

Execute Standard：ISO 6508，ASTM E18，JIS Z2245，GB/T 230.2

Specification

Description	Technical parameters
Initial Test Force	10kgf (98.07N)
Total Test Force	60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter	Ф3.175mmBall Indenter, Ф6.35mmBall Indenter, Ф12.7mmBall Indenter
Loading Method	Automatic (Loading/Dwell/Unloading)
Hardness Reading	Dial
Hardness Resolution	0.5HR
Data Output	Built-in Printer，RS232 Interface
Dwell Time	2~60s
Max. Height of Specimen	185mm
Throat	165mm
Power Supply	AC220V，50Hz
Dimension	520×215×700mm，Packing Dimension: 650×370×950mm
Weight	Net Weight: 78kg，Gross Weight: 100kg

Packing list

Name	Qty	Name	Qty
Instrument Main Body	1 set	Ф3.175mmBall Indenter	1 pc
Ф6.35mmBall Indenter	1 pc	Ф12.7mmBall Indenter	1 pc
Middle Plane Test Table	1 pc	Large Plane Test Table	1 pc
V-shaped Test Table	1 pc	Hardness Block 75~85 HREW	1 pc
Hardness Block 110~120 HRL	1 pc	Hardness Block 100~110 HRM	1 pc
Hardness Block 115~125 HRR	1 pc	Weight A, B, C	3 pcs
Power Cable	1 pc	Fuse 2A	2 pcs
Level	1 pc	Horizontal Regulating Screw	4 pcs
Inner Hexagon Spanner	1 pc	Spanner	1 pc
Anti-dust Cover	1 pc	Usage Instruction Manual	1 copy
