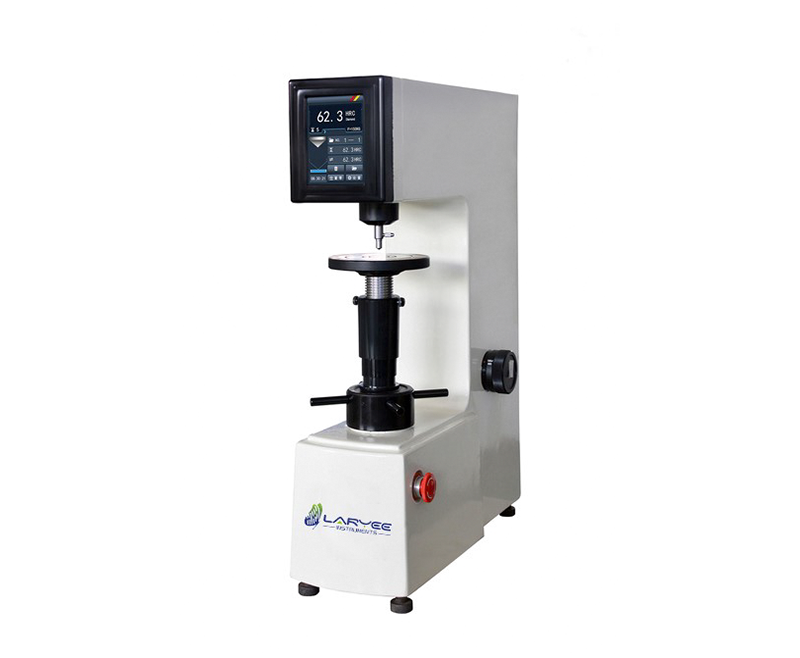

Digital Rockwell Hardness Tester

Model: HRS-150

Application:

Rockwell hardness tester is a simple instrument to test the Rockwell hardness value of hard metals, carburized steels, quenched steels, hard cast irons, mild steels, Al-alloys,Cu-alloys and melleable irons according to Rockwell Principle conforms to ISO 6508 and ASTM E18. It measures the depth difference between the primary and testing load and convert the depth difference to the hardness value. HRS-150 is Rockwell test with scales A-B-C(60/100/150kgf) with digital indicator and motor control loading. Hardness value can convert to HV, HB.

Inquire Now

Video:

Specification:

Model	HRS-150
Pre-Loading Test Force	98N(10Kgf)
Total Test Force	588N(60Kgf), 980N(100Kgf), 1470N(150Kgf)
Measuring Range	HRA: 20～88, HRB: 20～100, HRC: 20～70
Data Output	Built-in Printer，RS232 Interface
Indicating Mode	Touch Screen Display
Max. Height Of Specimen	185mm
Throat	165mm
Scales	HRA,HRB,HRC（0.1HR Reading）
Standard Accessories	Diamond Rockwell indenter(1) Φ1.5875mm hard steel ball indenter(1) Standard Rockwell hardness block(3) Testing tables(big,medium,V shape-total 3) Weights(A,B,C)
Power Supply	AC220V 50/60Hz
