Model: 560RSS
Application:

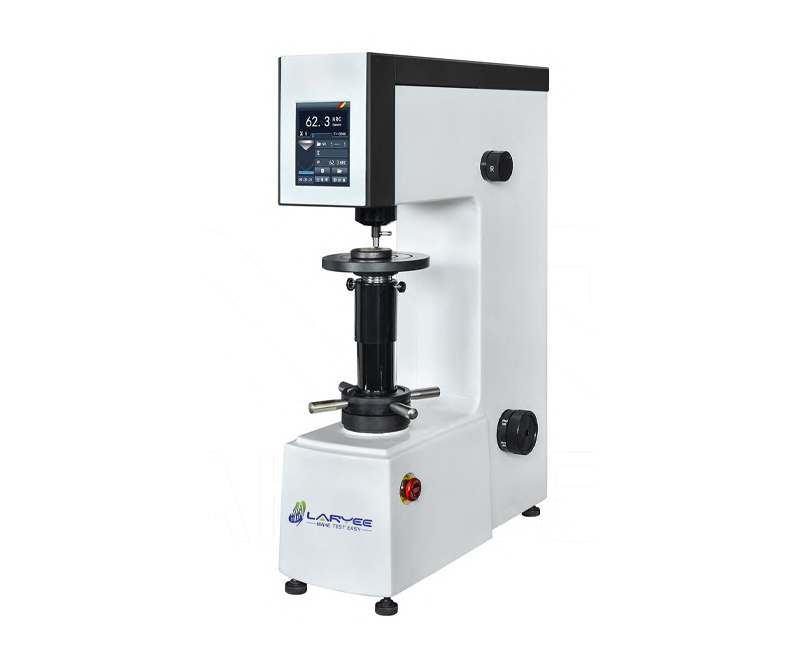

The 560RSS digital dual Rockwell hardness tester adopts a high-definition color touch screen, which can display and set the current test scale, test force, test head, holding time, hardness conversion value and so on. The instrument adopts a weight loading mechanism that can switch between Rockwell and surface Rockwell scales. During operation, only manual preloading is required until the instrument beeps, and the instrument will automatically load, hold, unload, and display the hardness value. The operation is convenient and the display is intuitive. Suitable for hardness testing of quenched, tempered, annealed, cold hard castings, malleable castings, hard alloy steels, aluminum alloys, copper alloys, bearing steels and so on. Also applicable to surface quenched steel, material surface heat treatment and chemical treatment layers, copper, aluminum alloys, thin plates, galvanized, chrome plated, tin plated materials, bearing steel, cold hard castings and so on.
Main Function:
² The integrated cast iron structure achieves a rigidity of 99% for the main body of the aircraft, minimizing deformation. The shell has undergone natural aging treatment for more than six months, ensuring stable physical properties;
² After heat treatment, the hardness of the lifting screw reaches between 35-40HRC, with stable structure and wear resistance;
² The weights and levers are manufactured and calibrated using classic techniques, with high precision and can be fine-tuned through mechanical structures;
² 5.6-inch high-definition touch screen display and operation, dynamic image display device operation process and buzzing prompt;
² Support the selection of all Rockwell and surface Rockwell hardness scales, and prompt the selection of corresponding indenter and test force after selecting the scale. The test force can be switched by rotating the variable load handwheel;
² Support the conversion of various hardness scales, real-time conversion, and instant selection and replacement;
² Support upper and lower limit settings, out of tolerance discrimination prompt, with arc correction compensation function;
² Real time saving of hardness test results, automatic calculation of maximum, minimum, mean, standard deviation, repeatability, etc., with multi folder selection, optional deletion and printing output;
² Built in thermal printer, fast printing speed, equipped with USB interface, users can directly export data to a USB flash drive.
Specification:
Model | 560RSS | |
Hardness | Rockwell | Superficial Rockwell |
Hardness scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV | HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
Total test force
| 588N(60Kgf) 980N(100Kgf) 1470N(150Kgf) | 147N(15Kgf) 294N(30Kgf) 441N (45Kgf |
Conversion scales | HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW Real time conversion, on-demand switching | |
Allowed tolerance | ≤±1.0% | |
Resolution | 0.1 Rockwell unit | |
Accessibility | Upper and lower limit settings, out of tolerance discrimination prompt; Surface correction, automatic correction of cylindrical and spherical measurement results | |
Data output | Built in printer, USB interface | |
Data statistics | It can store six folders, each containing 1000 pieces of data. It automatically calculates the maximum, minimum, average, total, standard deviation, and repeatability, and can also selectively count and output | |
Preliminary test force | 98N (10Kgf) | 29.4N (3Kgf) |
Total test force dwell time | 0~99s, the initial test force holding time can be set, Total test force holding time and elastic recovery holding time | |
Hardness indication | Digital | |
Max height of specimens | 185mm | |
Max width of specimens | 165mm | |
Dimension(D*W*H)（mm） | 520 X 215X 740 | |
Net Weight | 80kg | |
Power Supply | AC 220V±5% 50/60Hz | |
Packing list
Beside the main body of hardness tester, there are following accessories:
No. | Description of Goods | QTY |
1 | Diamond Rockwell Indenter | 1PC |
2 | ф1.5875mm ball Indenter | 1PC |
3 | Testing Table , Φ150mm and Φ74mm flat table. Φ40mm V shape table | TOTAL 3 PCS |
4 | Weight: No. 1, 2,3,4,5 | TOTAL 5 PCS |
5 | Standard Rockwell Hardness Block: 60~70 HRC 20~30 HRC 80~100 HRBW | TOTAL 3 PCS |
6 | Standard Superficial Rockwell Hardness Block: 70~85 HR30TW 65~80 HR30N | TOTAL 2 PCS |
7 | Level Gauge | 1PC |
8 | Horizontal Regulating Screw | 4 PCS |
9 | Screw driver | 1PC |
10 | Spanner | 2 PCS |
11 | Power Cord | 1PC |
12 | Fuse 2A | 2PCS |
13 | Dust cover | 1PC |
14 | Usage Instruction Manual of Hardness Tester | 1PC |
