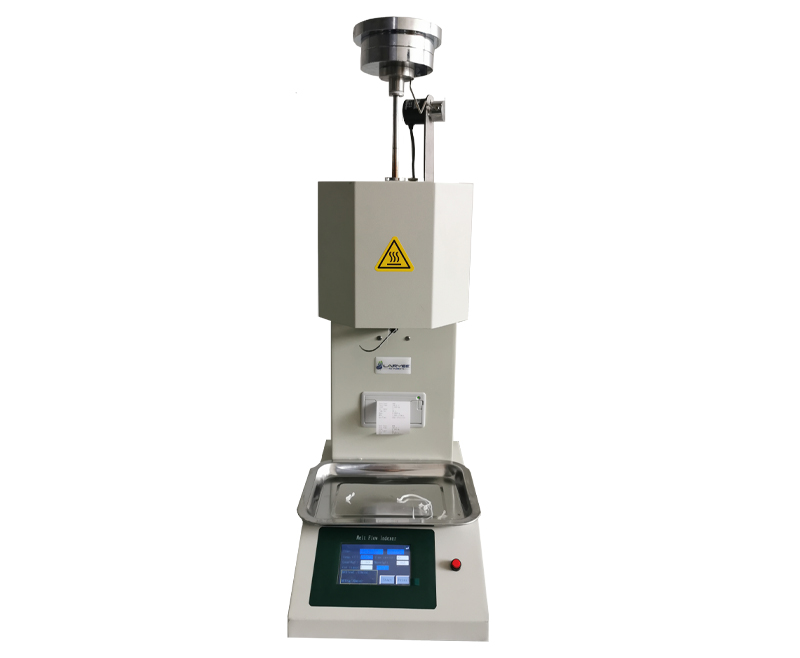

Model: XNR-400E
Application:
The Melt Flow Indexer is designed according to ISO1133, ASTM D1238. It is suitable for determining the MFR and MVR of thermoplastic. Not only the machine can have low melt temperature, but also it has been widely used in testing the high melt temperature plastics such as PC, Fluor plastics and nylon,PE, PP, POM, PS, ABS resin plastics with mini printer to print the test results.With mini printer to print the test results.
Specification:
| Description | Technical parameters |
| Temperature Range | Room temperature ~ 450℃ |
| Temperature Accuracy | ±0.5℃ |
| Temperature Resolution | 0.1℃ |
| Inner Diameter of Cylinder | Ф9.550±0.025mm |
| Diameter of Piston | Ф9.475±0.015mm |
| Length of Piston | 6.350±0.100mm |
| Total Load | Including standard weights and piston rod. (0.325kg,1.2kg, 2.16kg, 3.8kg. 5.0kg, 10.00kg, 12.5kg, 21.6kg) |
| Inner Diameter of Die | Ф2.095±0.005mm |
| Length of Die | 8.000±0.025mm |
| Cutting Method | Manual and Automatic control mode |
| Length of Cylinder | 162mm |
| Working Environment | Temperature:10~40℃; Relative Humidity: 30%-80% |
| Power Supply | 1P, 220v/110v, 50/60Hz, 450W |
| Net Weight | 50kg |
