TC220 Tablet & Capsule Hardness Tester

Laryee’s TC220 Tablet & Capsule Hardness Tester provides a compact solution for evaluating the mechanical properties of tablets and soft gelatin capsules. With a 2–200 N test range, the instrument combines force and deformation measurement with touchscreen operation, automatic control and integrated data processing.

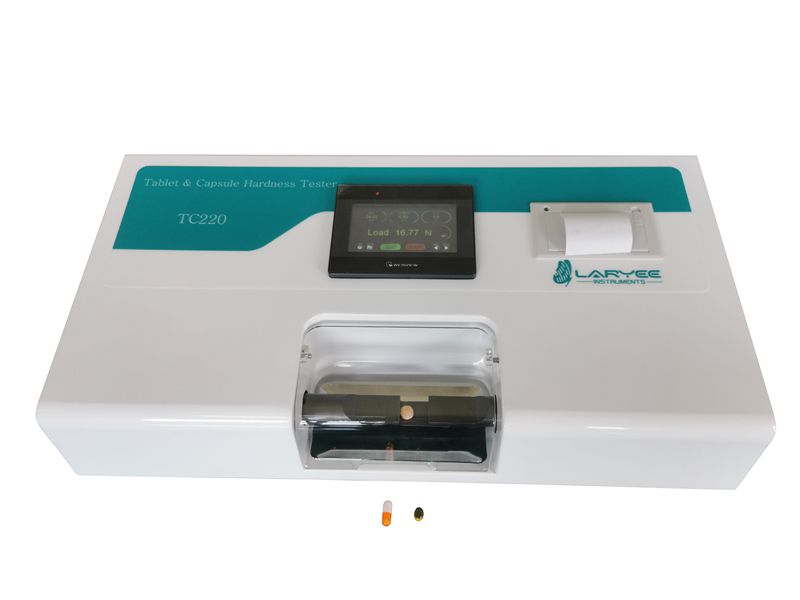

Figure 1. TC220 Tablet & Capsule Hardness Tester.

Three Test Modes in One Instrument

A key feature of the TC220 is its three testing modes: Breaking Load, Load at Set Deformation, and Deformation at Set Load. This allows users to evaluate samples from different perspectives on the same platform, rather than relying only on a conventional breaking-force measurement.

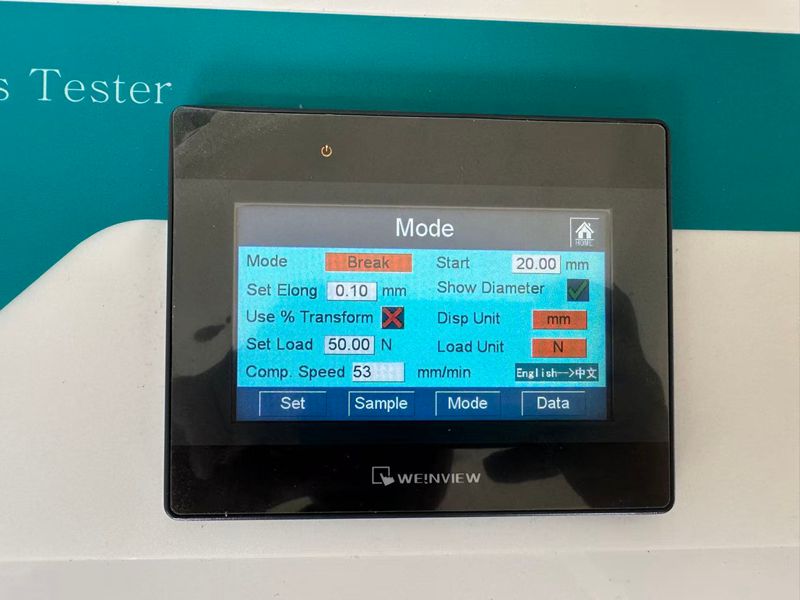

Figure 2. TC220 touchscreen interface for test-mode and parameter settings.

Designed for Routine Pharmaceutical QC

The TC220 uses a Siemens PLC-based control system and a 4.3-inch touchscreen with Chinese and English operation. It supports automatic testing, result statistics and direct printing, while customizable sample fixtures help accommodate tablets and capsules of different sizes and shapes.

Watch the TC220 in Operation

The demonstration video shows sample placement, parameter settings and the basic testing workflow of the TC220.

【VIDEO】

The TC220 is suitable for pharmaceutical manufacturers, quality-control laboratories, universities, research institutes and testing organizations requiring practical mechanical evaluation of tablets and soft gelatin capsules.
