CM-T Series Lab-scale Glass Flow Reactor

Model: CM-T Series Lab-scale Glass Flow Reactor

Summary:

CM-T is a manually operated, metal-free continuous flow microchannel reactor system for reaction screening & process optimisation. Its modular design gives the user flexibility on the number of feed lines, reactor type & volume.With glass microchannel reactors at the heart of the system & peripherals with a high chemical compatibility, the lab-scale system is suitable for a wide range of challenging chemistries & processing conditions.

The microreactor has the advantages of large specific surface area, high mass and heat transfer efficiency, high safety, and small amplification effect. Compared with the traditional batch reaction, it has higher reproducibility and stability in the process of reaction amplification and optimization, sexuality and efficiency. In addition, the micro-reactor has a low heat buffer demand, a small footprint, and a high degree of automation, which greatly saves manpower and material resources.

CM-T series glass microchannel reactors have the characteristics of low reagent consumption (liquid holding capacity of microliters), large specific surface area, high temperature resistance (-25℃~195℃), high pressure resistance (2Mpa), etc. The product takes into account the two major factors of mass transfer and pressure drop. There is no sudden shrinkage and sudden expansion in the process flow channel, which ensures efficient mass transfer and small pressure drop. The heat exchange module can maximize the mass transfer and heat transfer efficiency. Safely and stably realize the chemical process of research and development and small-scale trials.

Inquire Now Next Product

CM-T glass flow microchannel reactor technical characteristics:

·Visualization, each module can be directly observed or photographed independently - the observation window can be used to directly observe the process conditions or to photograph fluids with a microscope.

·Photochemical reaction - the window can use LED or mercury lamp to realize photocatalytic process (by adding LED or mercury lamp light source module, photocatalytic reaction can be realized).

· Equipped with a heat exchange module - it can realize the overall temperature control of the reaction (applicable to 4 modules) or dual temperature zone temperature control (applicable to 8 modules).

·Good heat transfer and mass transfer performance, multiple static mixing unit structures in one piece to achieve efficient mixing.

·High flexibility and free combination. The modular design can meet various process requirements, and the modular configuration can connect multiple modules in series/parallel to realize one-step and multi-step reactions.

→A+B=C (one-step series connection) A+B=C+Q=D (multi-step series connection) A+B=Q1 →A+B=C (one-step series connection) A+B=C+Q=D (multi-step series connection) A+B=Q1 C+D=Q2 Q1+Q2=D (multi-step parallel connection + series connection)

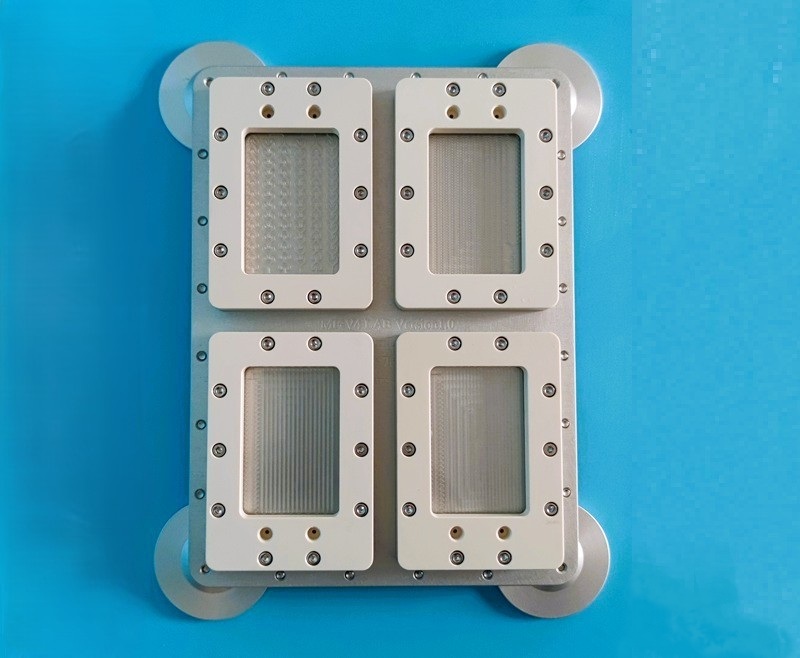

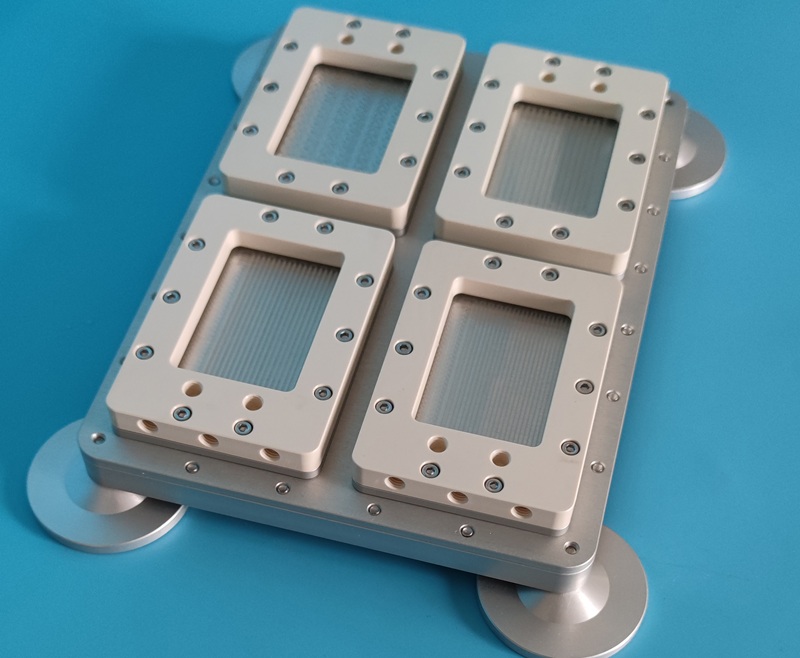

·4-8 sets of independent chips can be used to form a system, and the residence time of the sample can be adjusted according to the experimental needs to improve the yield.

·Large specific surface area and heat exchange system can precisely control the temperature to promote the formation of target products.

·The liquid holding capacity is small (microliters), and the consumption of raw materials/reagents required for the reaction is small, which can be used for the experimental exploration of precious raw materials and the safe synthesis of dangerous substances. It is highly economical for the synthesis of expensive reagents and has the advantage of reducing the cost of process development.

·It is suitable for various chemical reactions and mixing processes, especially for the formation of nanoparticles. It has certain solid compatibility and can continuously and stably produce nanoparticles.

·Suitable for various liquid-liquid rapid reactions, strong exothermic reactions, dangerous reactions and chemical synthesis reactions that require good mixing conditions.

·Compared with the amplification effect of the traditional (coil) tube continuous flow reactor, the plate continuous flow reactor has the advantages of increased yield, better mass transfer and easy scale-up.

Specifications

CM-T Lab-scale Continuous Flow Microchannel Reactors

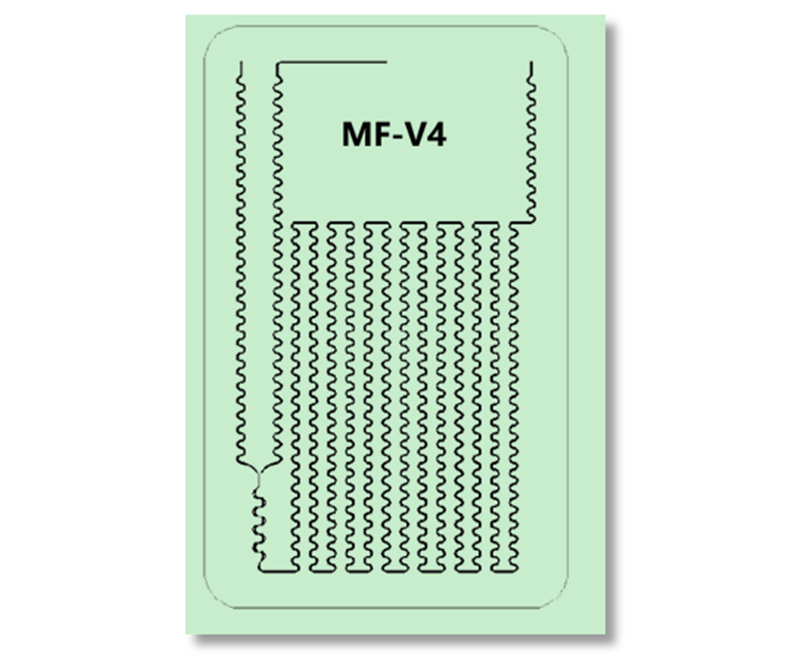

Model	CM-T-M（SU）	CM-T-M（SS）	CM-T-M(SV)	CM-T-M(SX)
Volume	336uL	257uL	107uL	119uL
Channel Length	1.58m	2.32m	4.82m	1.71m
Size	*50804mm*
Material	Glass
Temperature Range	-25°C-195°C
Operating Pressure	20bar(custom made up to 7Mpa)
Throughput	0.1-10mL/min（up to 0.6kg/h）

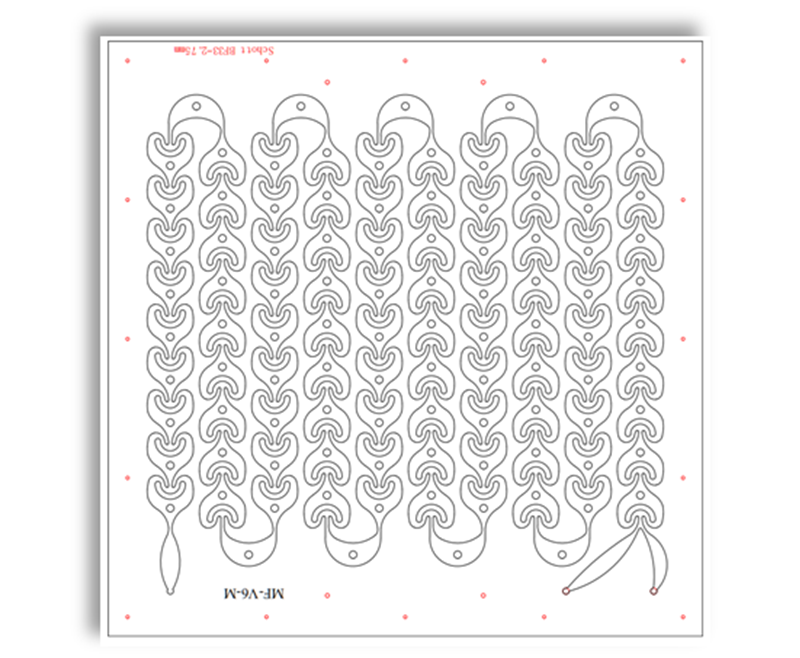

Applicable reaction conditions	The general-purpose microreactor is suitable for most reaction processes. The unique design enhances the mixing effect and speeds up the reaction rate. This structure is the same as our company's MF-V6 structure, and there is almost no amplification effect after the reaction transfer.	General-purpose micro-reactor, suitable for most reaction processes.	The process-enhanced micro-reactor has a good effect on the reaction where the two-phase density difference is large, the reaction rate constant is very low, and the fluid viscosity is small.	The process-enhanced micro-reactor has a good effect on the reaction with a large difference in two-phase density and a very low reaction rate constant.
Holder	PFA/PPS
Reagent import and export	*Two in and one out or one in and one out (Multiple imports can be customized)**
Inert wetted materials	PTFE、PFA/PPS、FFKM、glass

CM-T glass flow microreactor description:

CM-T glass microchannel reactors is characterized by unique internal structure, which is able to improve the mixing of fluids, enhance mass transfer and increase total heat transfer efficiency, hence appropriate for multi-phase reactions as well as those with high risks or under harsh conditions such as high temperature and low temperature.

Suitable for liquid-liquid, gas-liquid homogenous or non-homogenous reaction.

Application:

· Assessment of process feasibility under flow conditions

· Exploration of novel reaction space

· Process parameter optimisation & validation

·Rapid kinetic profiling

· Evaluation of parameter influence on CQA's

· Process feasibility assessment

· Reaction screening & process optimisation

· Material supply for performance testing

· Education & training

·For Lab Research and lab scale productions.

·Switch batch production to continuous production, solving the major hazards of explosion, low efficiency, severe pollution and large energy consumption.

·Extremely Exothermic Reactions.

·High Temperature, High Pressure Reactions.
