Model: CM-P
Summary:

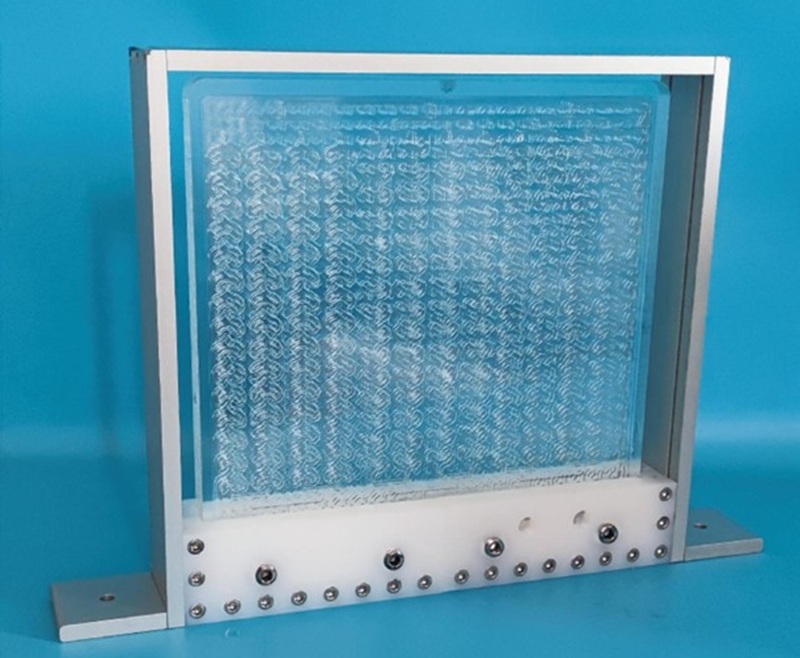

CM-P is a modular, glass flow reactor for process development, pilot & full-scale production. Fabricated from borosilicate glass, with integrated heat exchange, MF-V9 flow reactor modules give unrivalled chemical compatibility & process control for challenging chemical applications at scale.Employing standard tube fittings, MF-V9 flow reactor can be used with existing pumps & thermostats, or supplied as total systems on request.
Our industrial flow reactors are modular glass reactors for the performance of continuous flow reactions at ton scale.Microchannel reactors are suitable for chemically challenging reactions under extreme processing conditions such as fast, highly exothermic reactions, reactions with aggressive media, reactions employing unstable intermediates or hazardous reactions not accessible under batch conditions.

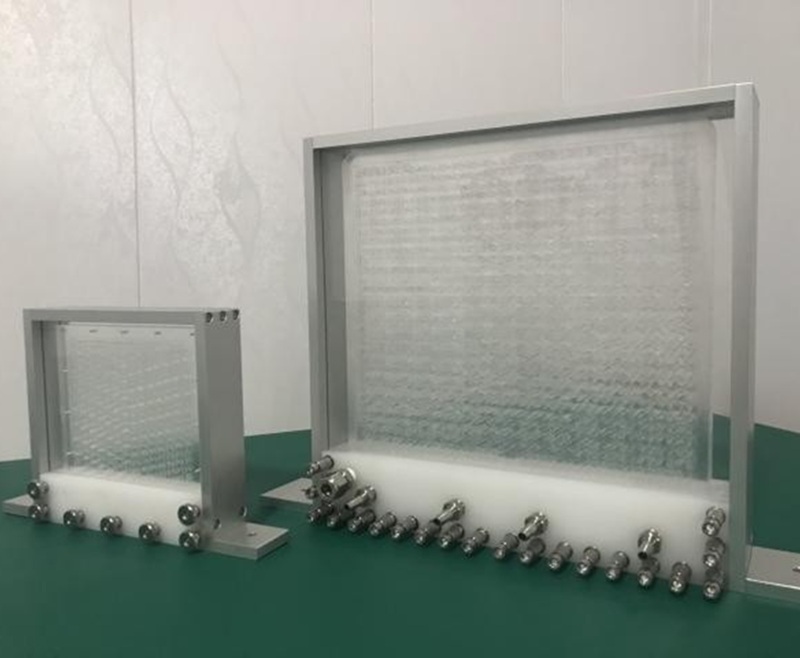

The CM-P thousand-ton glass microreactor is a capacity upgrade without magnification structure based on the CM-D small scale glass microreactor. Compared with CM-D, CM-P does not amplify the former unit hybrid structure to the same proportion, but transfers the unit hybrid structure of CM-D in parallel with 8 threads without amplification. Through the special design of 3-layer heat exchange, 2-layer process, and 1-layer sealing, the flux is increased by 15-20 times, and the heat exchange efficiency is further strengthened, so that the reaction can still be obtained in the case of high flux Good heat transfer control. At the same time, the two major factors of mass transfer and pressure drop are taken into account, ensuring mass transfer without amplification effect and small pressure drop, realizing the maximization of mass transfer and heat transfer efficiency, and safely and stably achieving the thousand-ton pilot production process.
CM-P, liquid holding capacity 100mL, 8-pass parallel connection, 6-layer 3 heat exchange 2 process design, flux can reach 1500-2000T/a, support UV light penetration above 315nm UVB (80% light transmittance) , and the same flow pressure.
Specification:
CM-P Pilot-scale&Production-scale Continuous Flow Microchannel Reactors | |
Model | CM-P |
Size | 290×290×21mm |
Material | Glass |
Channel Length | 2.4m |
Volume | 100ml |
Temperature Range | -25℃-195℃ |
Operating Pressure | 0-16bar(-25℃-100℃); 0-10bar(100℃-195℃) |
Throughput | 0.5-3L/min（up to 180kg/h） |
Examples of User applications:
●Fast, strongly exothermic reactions
●Reactions with aggressive media & / or unstable intermediates
●Material supply under GMP conditions
●Processes include nitrations, cyanations, lithiations, diazotisations & halogenations
Our Knowledgeable Team is Here to Help
Our team is composed of experienced experts who are eager to help you find a solution that suits your business.
