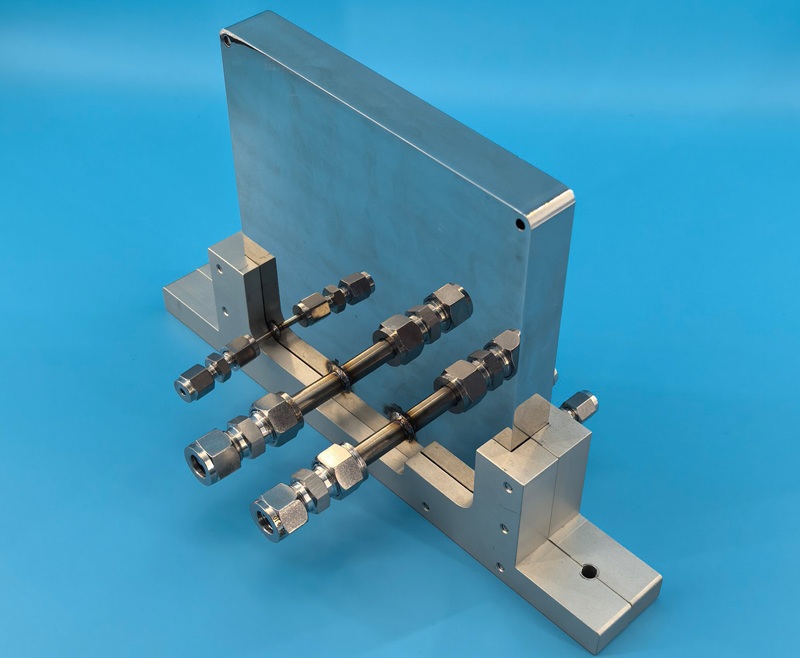

Model: CM-DM&PM
Application:
For Lab Research and lab scale productions. Switch batch production to continuous production, solving the major hazards of explosion, low efficiency, severe pollution and large energy consumption. Extremely Exothermic Reactions.High Temperature, High Pressure Reactions.Polymerization
Summary:
The welded metal micro-reactor adopts the latest seamless welding technology, which realizes the welding of the entire plane instead of the welding corners, and through a special process, it is possible to realize high-strength whole-surface welding without processing the weld seam, which greatly reduces the processing difficulty. The processing time is reduced, and the welding strength is much higher than that of resistance welding and butt welding.

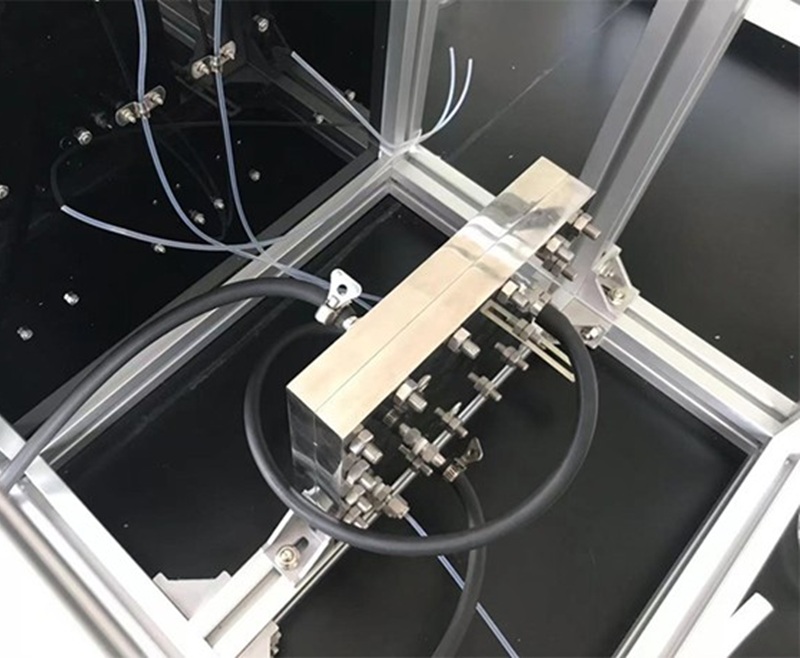

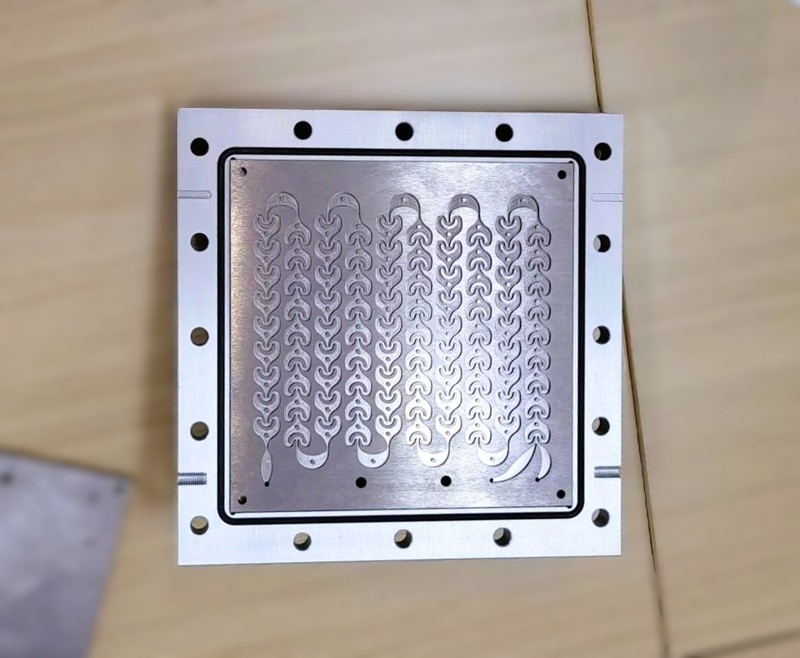

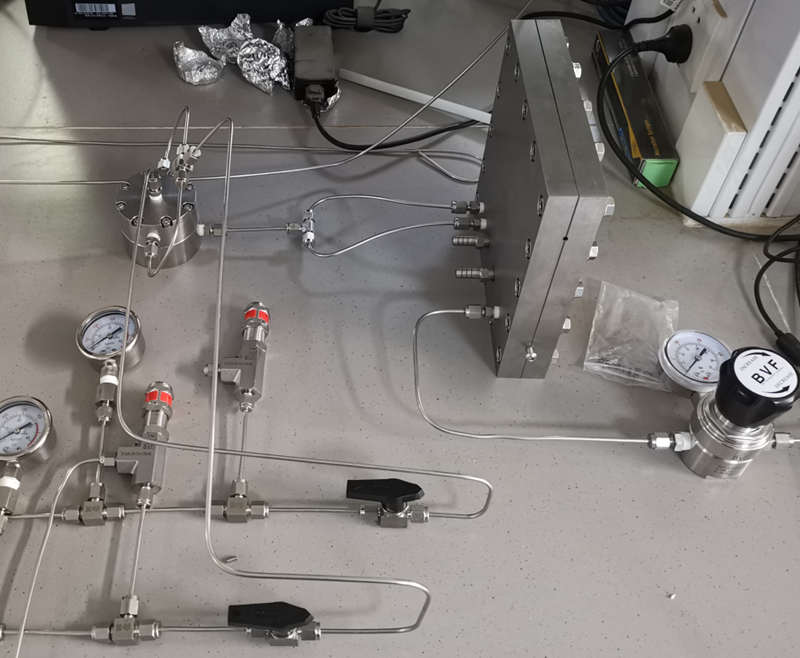

The process side of the welded metal microreactor adopts the separation shear-combination-separation shear flow channel model, which takes into account the two factors of mass transfer and pressure drop, and maximizes the efficiency of the mass transfer process on the basis of minimizing the pressure drop. At the same time, heat exchange plates with special heat transfer structures are integrated on both sides of the process board. Through efficient two-way convection heat transfer, the heat in the reaction process is released, and the small-scale and pilot-scale reaction process is safely and stably realized.
Suitable for liquid-liquid, gas-liquid homogenous or non-homogenous reaction.

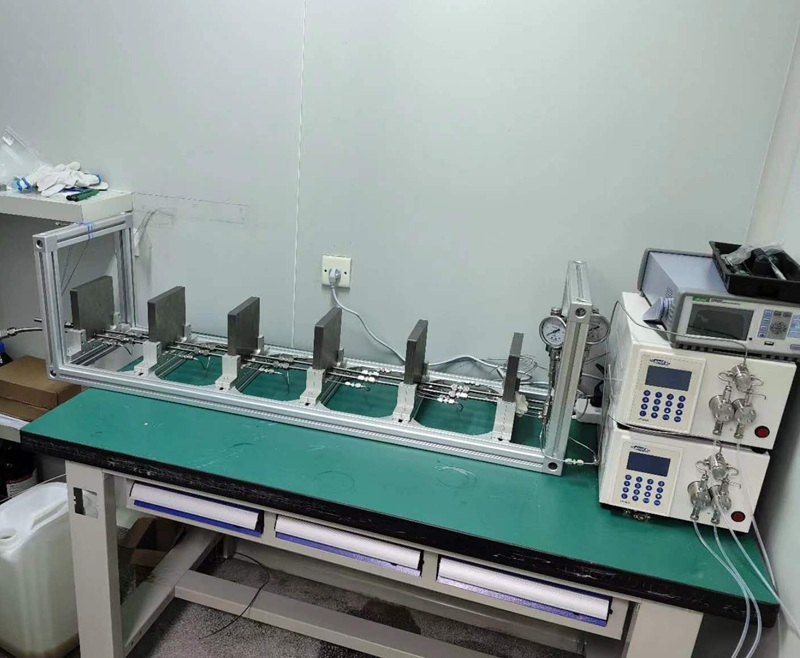

Applicable for industrial flow chemical synthesis & process development.
Specifications
·Temperature range: -40℃-300℃
·Pressure range: 0-7MPa
·Single plate fluid holding capacity: 14ml
·Channel length:3m
·Feature size depth: 1000um
·Material of Construction: S.S 316L, titanium, Hc276, Monel, zirconium, etc.

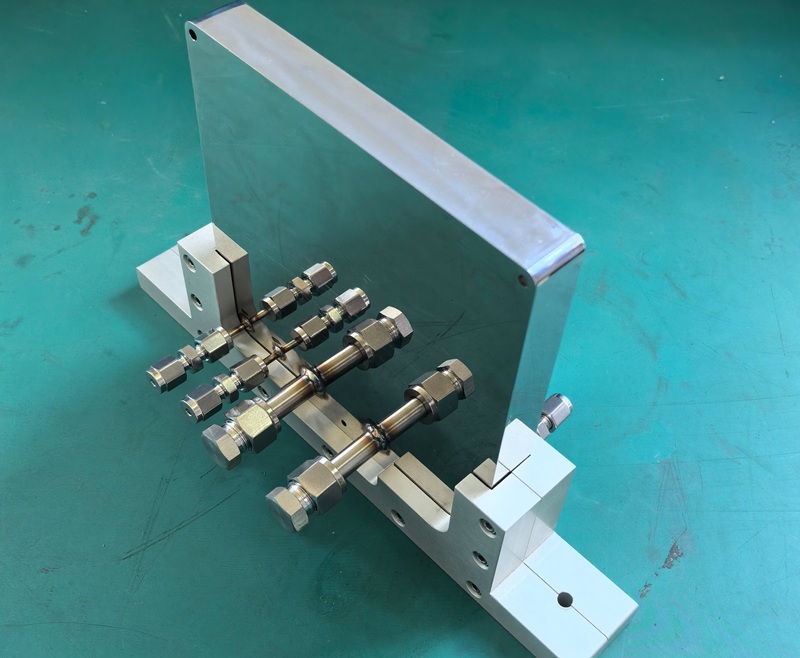

CM-DM & PM Continuous Flow Microchannel Reactors (Metal) | ||
Model | CM-DM | CM-PM |
Processing methods | Welding Multi-layer flat forming Connection without seal ring | |
Volume | 9ml | 80ml |
Size | 210×210×40mm | 300*300*20mm |
Throughput | ~70T/Y | ~1000T/Y |
Material | TA2、SUS316L、HC276、HB-2、2205、904L etc | TA2、HC276、HB-2、2205、904L etc |
Import and export | Two in one out/one in one out | |
Interface | Thread + sealing ring/welding | |
Temperature Range | -30℃-280℃/-60-450℃ | |
Operating Pressure | 0-50bar /0-80bar | |
Advantages
·Safety: Small amount of liquid holdup in ml, and less consumption of raw materials.
·High flexibility:Convenient reorganization of reaction modules with two or more feeding streams.
·Internal design:Excellent heat & mass transfer.
