Model: XHVT-1000Z
Introduction

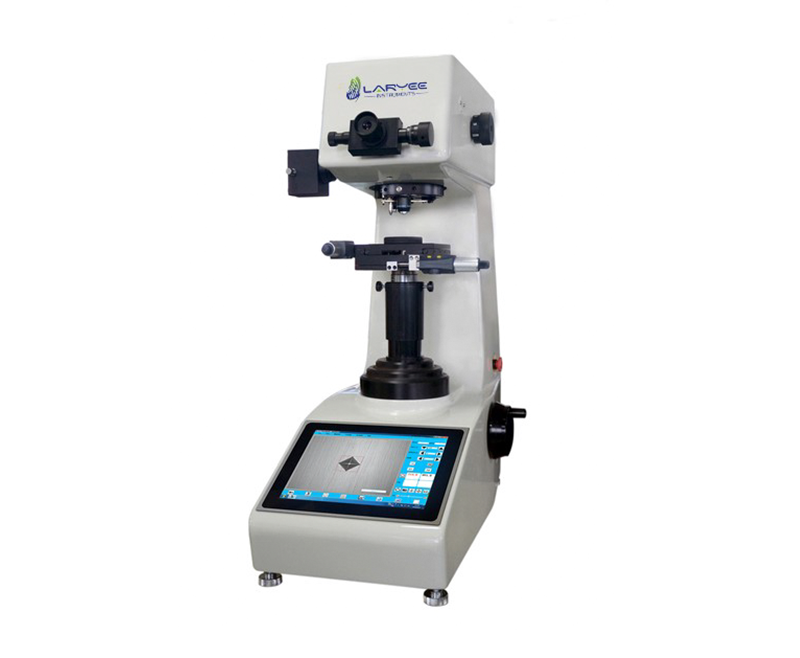

This instrument is a new generation of micro hardness tester. It uses an industrial tablet computer combined with the hardness tester. All parameters required for testing are selected on the tablet computer. The touch screen is convenient and fast to operate, and the display is clear and intuitive. The built-in CCD image acquisition system can directly display the dynamic indentation image on the tablet computer, lock the image and automatically measure the Vickers hardness value. The measurement accuracy is high, the performance is stable, and the manual operation error is avoided. The hardness tester has complete functions and has advanced domestic level.
Figures
● Integrated design of hardness tester and computer. With Windows 7 operating system, it has all the functions of the computer and can be connected to external display, printer and other output devices.
● Automatic identification and switching between objective lens and indenter.
● The lifting screw adopts worm gear and worm structure, with stable transmission.
● Digital cross test bench, with more accurate positioning and measurement.
● Select the test force manually, and the loading/holding/unloading process of the test force will be completed automatically.
● Built in CCD image automatic measurement system, the indentation display is clear and intuitive, and the hardness value is automatically measured.
● It has the conversion function of hardness scales, which can be converted between hardness scales.
● Automatically record the measurement data, generate the hardness depth curve, and save it as a WORD file.
Specification
Description | Technical parameters |
Test force | 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf |
0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N | |
Hardness value | 1HV~2967HV |
Test mode | HV/HK |
Test force application method | Automatic loading, holding and unloading test force |
Objective lens and indenter switching | Automatic |
Computer | CPU: Intel I5, memory: 4G, SSD: 128G |
Camera pixels | 1.3 million |
Dwell time of test force | 0～60s (input arbitrarily as needed) |
Minimum detection unit per grid | 1μm |
Maximum height of specimen | 170mm |
Distance from the center of the indenter to the outer wall | 130mm |
Host weight | About 50 Kg |
