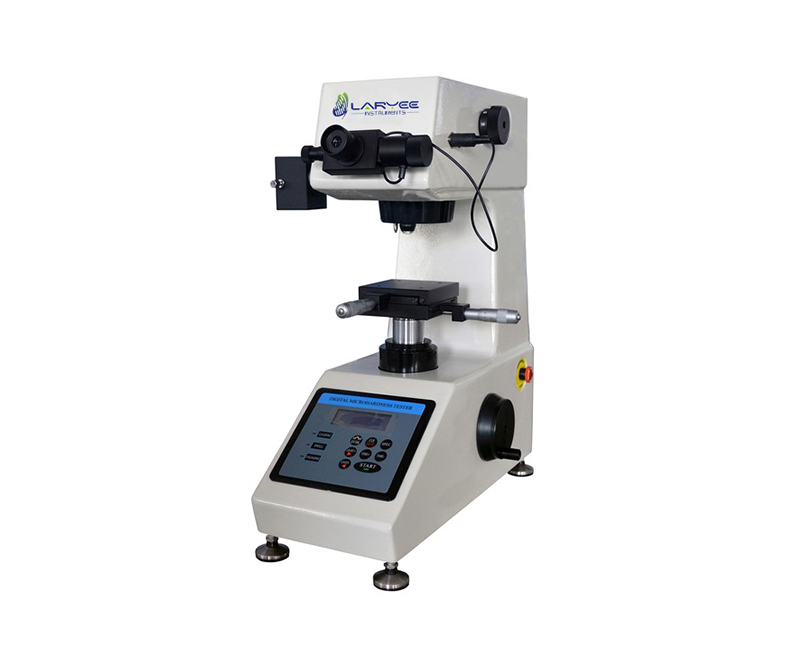

Digital Micro Hardness Tester HVS-1000Z

Model: HVS-1000Z

Application

The digital micro hardness tester is a lab instrument to measure the hardness value of all kinds of metals according to Micro indentation hardness principle ASTM E384 and ISO 6507.They are widely used in metallurgy, forging, casting, hardness steel and nonferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones; thin plastic section industries, as well as in the laboratories,universities,college and scientific research institutes.

Inquire Now Next Product

Features

²Two grades micro-reading magnification with 100X and 400X times.

²LCD screen can directly show measurement methods, test force, indentation length, hardness value,dwell time of test force and the number of measurement.

²Can be optionally equipped with digital microscope and interface, which can be linked to camera and CCD ideo-camera.

²With mini printer, easy to print the testing result.

Key specifications:

Model			HVS-1000Z
Test Force	gf		10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
	N		0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Test Range			1HV~2967HV
Hardness Resolution			0.1HV
Test Mode			HV/HK
Loading Method			Automatic (Loading/Dwell/Unloading)
Data Output			Built-in Printer，RS232 Interface
Eyepiece		Objective	10^×Digital Measuring Eyepiece	10^×(Observe)，40^×(Measure)
Total Magnification			100^×，400^×
Effective Field of View			200μm
Min. Measuring Unit			0.06μm
Dwell Time			0~60s
Light Source			Halogen Lamp
X-Y Test Table			Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Max. Height of Specimen			90mm
