Model: MCM30/55/80/100
Application

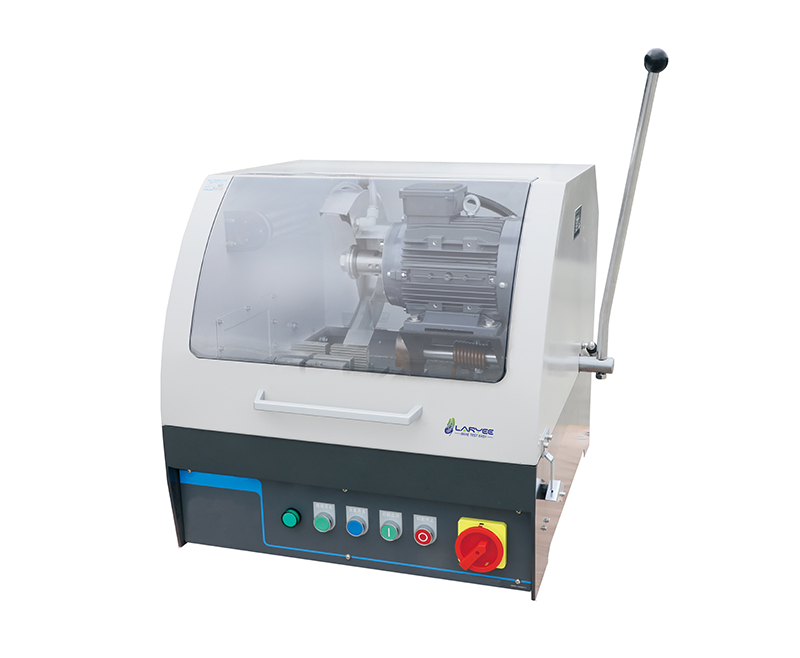

Metallographic sample cut-off machine is to use high-speed rotary blade to cut metallographic sample sheet off. It is an important machine to prepare the sample before the metallographic analyzing and hardness testing.
It is widely used in metallurgical laboratory for cutting metal materials.Manually cutting machines are safe, reliable and easy to operate also equipped with cooling system.
Specification
Model | MCM30 | MCM55 | MCM80 | MCM100 |
Cutting power | 1.1KW | 2.2KW | 3.0KW | 3.0KW |
Speed | 2800rpm | 2800rpm | 2800rpm | 2800rpm |
Max cutting section | 30mmx30mm | 55mmx55mm | φ80mm | φ100mm |
Cutting blade sizes | Φ250×2×32mm | Φ300X2X32mm | Φ250×2×32mm | Φ350×2.5×32mm |
Dimension | 650x450x400mm | 650x500x400mm | 690x790x670mm | 690x790x800mm |
Weight | 60kg | 80kg | 180kg | 190kg |
Power | 3P, 380V 50Hz | |||
Cooling system | Outside cooling water source | |||
