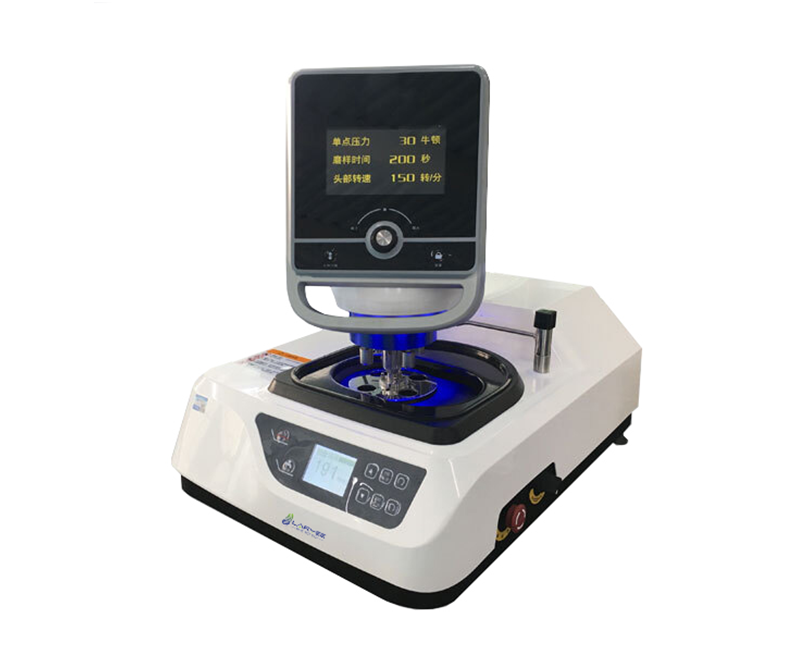

Metallographic Polishing machine

Model: AMP2

Application

AMP2 automatic grinding /polishing machine adopts international advanced manufacturing technology in accordance with international standards. This series adopts the advanced microprocessor control system, which makes grinding disc and grinding head speed step-less adjustable, sample preparation pressure, time setting.Operation can only change grinding disc and sandpaper fabric, showing more wide applicability. The machine has the following features such as optional grinding disc rotation, quick-change grinding disc, vertical preparation fixture, pneumatic single point loading. This machine has cooling device and abrasive scouring nozzle, equipped with beautiful and practical ABS shell, stainless steel standard parts, and it is never rust. This series is applicable to rough grinding, fine grinding, coarse polishing and polishing process as well as it is an ideal equipment for enterprises, scientific research institutions and colleague labs.

Inquire Now Next Product

Specification

Model	AMP2
Disc Diameter	Φ250mm(φ200mm, φ300mm can be customized)
Work Disc No.	1
Rotational Speed	50-1000rpm &150/300rpm
Rotational Direction	Clockwise or anticlockwise
Power Head Speed	50-150rpm
Loading Range	5-60N
Sample Preparation Time	0-995S
Preparation Sample Quantity	4 PCS
Sample Diameter	Φ30mm
Lighting	LED
Air Pressure	0.6-0.9MPa
Input voltage	Single-phase voltage AC220V/50HZ
Input power	1.1kw
Dimension	594mm x795mm x687mm
Net Weight	93kg
