Model: AMP2S
Application

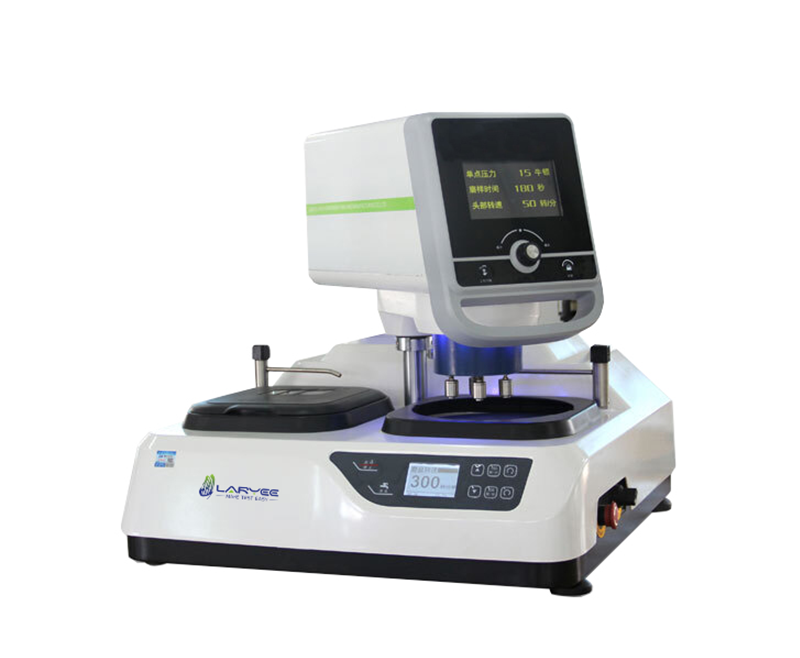

AMP2S metallographic grinding and polishing machine (two-disc desktop machine) is a new generation of high-precision grinding and polishing equipment with automatic sample preparation process, which is manufactured according to industry standards and using process technology. It is suitable for automatic sample preparation in the process of rough grinding, fine grinding, rough polishing to fine polishing of metallographic samples. It is an ideal sample preparation equipment for enterprises, scientific research units and laboratories of colleges and universities.
Specification
Model | AMP2S |
Grinding and polishing disc diameter | φ250mm(φ200mm, φ300mm can be customized) |
Grinding and polishing disc speed: | 50-1000r/min (step-less speed regulation)、150r/min、300r/min |
Grinding and polishing head speed: | 50-150r/min (step-less speed regulation) |
Loading Range | 5-60 Newtons (N) |
Sample preparation time | 0-995seconds (S) |
Input Power | 1.1KW |
compressed air pressure | 0.6 ~ 0.9Mpa |
Sample preparation time | 0 ~ 995 seconds (S) |
Specimen diameter: | φ30mm (can be customized φ22mm and φ45mm or other sizes) |
Maximum number of samples per time | 4PCS |
Working lighting | LED |
Dimensions | 758×785×680(mm) |
Input voltage | single-phase AC220V 50Hz |
