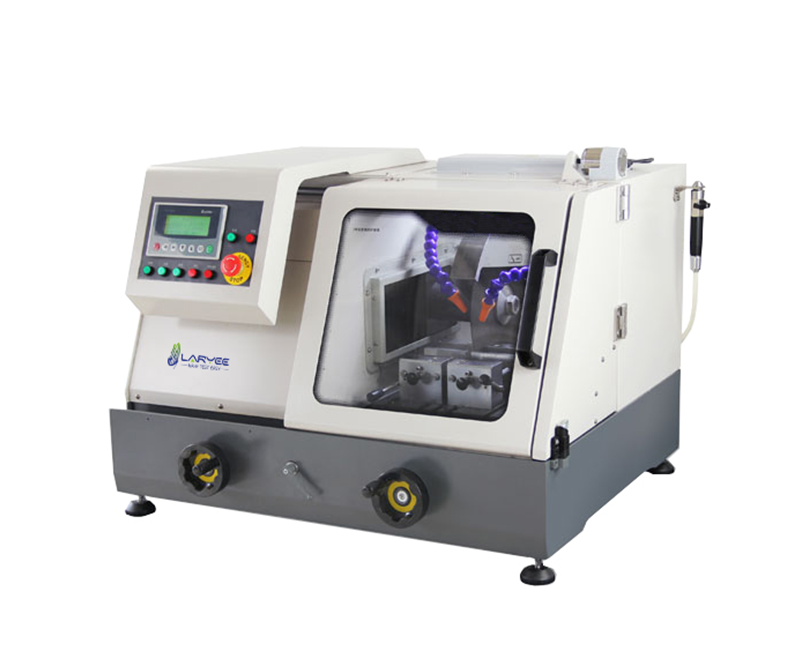

Model: ACM100
Application
It is suitable for cutting precision various materials with strong ability, high reliability, easy operation. The machine consists of machine body, electrical control tank, super cutting room,
and cooling system, supporting more economical and
convenient cutting modes. Meanwhile the user can define cutting modes, cutting speed and track. At the same time, this machine has following features, such as self-test, security. Running tips in order to improve the quality of cutting sample. It is one necessary equipment in laboratory of colleges, research institutes and factories
Specification
Model | ACM100 |
Cutting capacity(Max) | Φ100mm |
Cut-off wheel | Φ350×2.5×32mm |
Spindle speed | 2200rpm |
Feed speed | 0.1-15mm/min |
Max Table Moving Distance | 145mm (Only Y axis for Auto&Manu) |
Cutting motor | 3kw |
Input voltage | 380V/50Hz |
Cooling water tank capacity | 60L |
Table Dimension | 330mm×280mm |
Dimensions | 900mm×860mm×620mm |
Net weight | 285kg |
