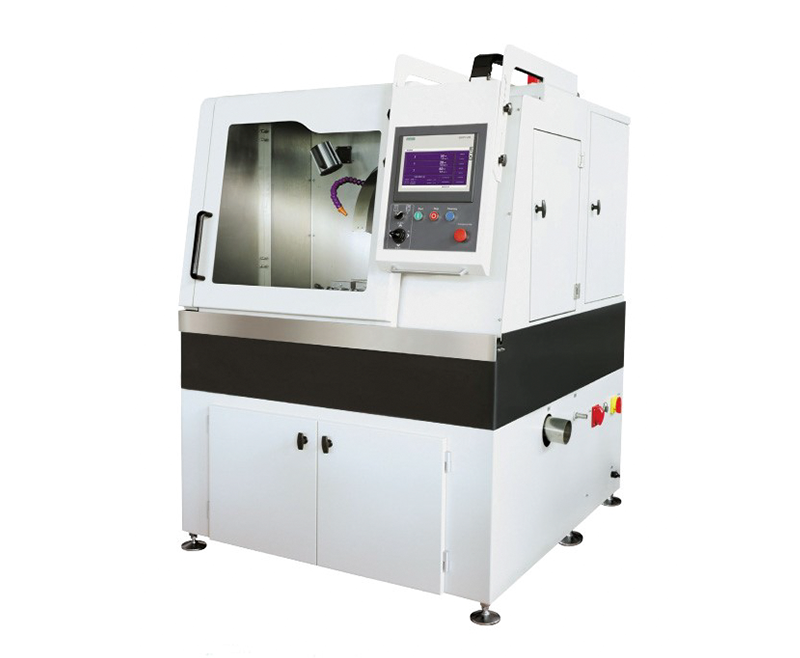

Model: ACM7160S
Application
ACM7160S full-automatic sample cutting machine is a large-scale automatic metallographic cutting machine, which adopts Siemens programmable controller, with very high reliability and strong control ability; Touch screen is used in human-computer interaction; The high-precision stepping motor is used in the control; It is applicable to cutting samples of various metal and non-metallic materials to observe the metallographic and petrographic structure of materials. The cutting process of this machine is automatic, low noise, easy to operate, safe and reliable. It is one of the important equipment for making solid material samples in modern laboratories.
Specification
Model | ACM7160S |
Cutting method | chopping cutting, flat pushing cutting |
Feed mode | Continuous feed, pulse feed |
Cutting speed | 0.03-1 mm/s (adjustment step is 0.01) |
Variable frequency speed regulation | 500~2300 rpm |
Maximum travel | Z-axis 220mm; Y axis 200mm; X-axis 240mm |
Cutting chamber size | 1240mm × 780mm |
Maximum passing diameter | φ 160mm |
Cutting blade size | 450 x3.2 x 32 mm |
Cutting power | 7.5KW |
Power supply | 380V/50Hz |
Overall dimension | 1300mm (1675mm after door opening) ×1560mm ×1880mm |
