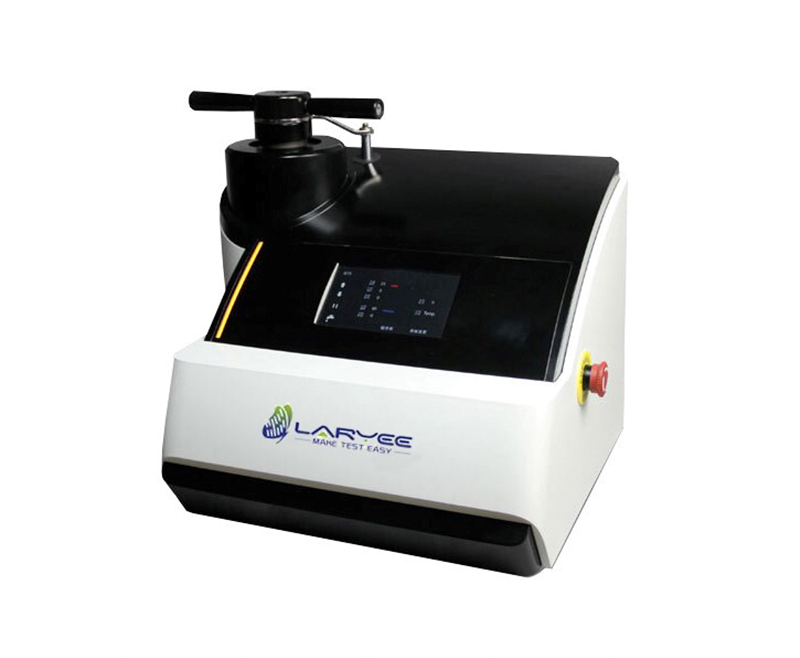

Model: AMP50
Application
AMP 50 belongs to automatic mounting press with the function of the water cooling system.It applies to all the hot mounting material plastic.
Features:
u After setting mounting parameters of the heating temperature, dwell time and loading pressure, filling in the sample and the mounting material, and fastening the cover, just press the start button, it will finish the mounting work without the operator watching near the machine.
u Hydraulic loading, constant pressure, loading pressure can be set.
u It is allowed that the operator can mount 2 specimens at same time with different mould. We will provide 10 package hot mounting materials.
Specification
Model | AMP50 |
Moulding specification | Ø25 mm, Ø30 mm, Ø40 mm, Ø50 mm, Four specifications (One standard configuration, select when ordering) |
System pressure setting range | 1-20MPa |
Cooling Range | 40～90 ℃ |
Heating Temp. | 90～200 ℃ |
Heating Power | 2400W for 25,30mm / 3000W for 40,50mm |
Power | 1P~220V, 50Hz |
Dimensions | 530×485×463mm |
