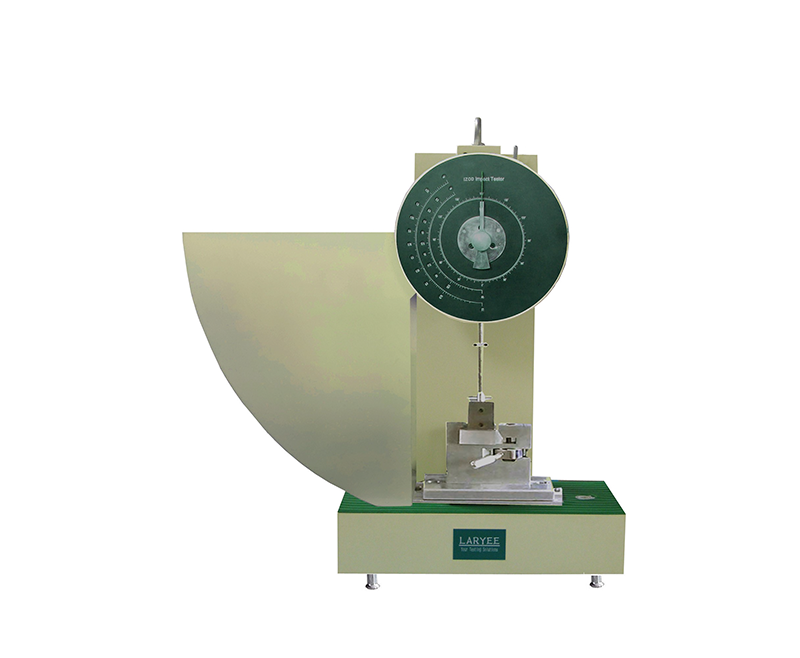

Dial Izod Impact Testing Machine

Model: ZIT2105/ZIT2122

Dial Izod Impact Testing Machine

Application:

Izod (cantilever-beam) impact testing machine is used for determining the anti-impact capability of non-metallic materials such as rigid plastics, nylon, glass fiber reinforced plastic, pottery, cast stone, electrical apparatus plastic insulating material. This dial indicating model can be operated easily and without power supply. It is essential testing instruments for university lab, college, research Institution, quality testing section and industrial process.Calibrated according to ISO13802.Can do test according to ISO180,ASTM D256.


Specification:

Model

ZIT2105

ZIT2122

Impact energy

1J, 2.75J, 5.5J

11J, 22J

Accuracy

1%

Impact speed

3.5m/s

3.5

Pendulum moment

Pd1=0.53590Nm / Pd2.75=1.47372Nm

Pd5.5=2.94744Nm / Pd11=5.8949Nm / Pd22=11.7898Nm

Raising angle

150°

Round angle radius of striking edge

R=0.8mm

R=0.8mm

Sample support span

10mm,12.7mm

10,12.7

Impact center distance

335mm

335mm

Scale reading

0-1J  Min.scale:0.01J

0-2.75J  Min.scale:0.025J

0-5.5J  Min.scale:0.05J

0-11J  Min.scale:0.1J

0-22J  Min.scale:0.2J

                 Dimension&Weight

550x350x900mm  80kg

550x350x900mm  95kg
