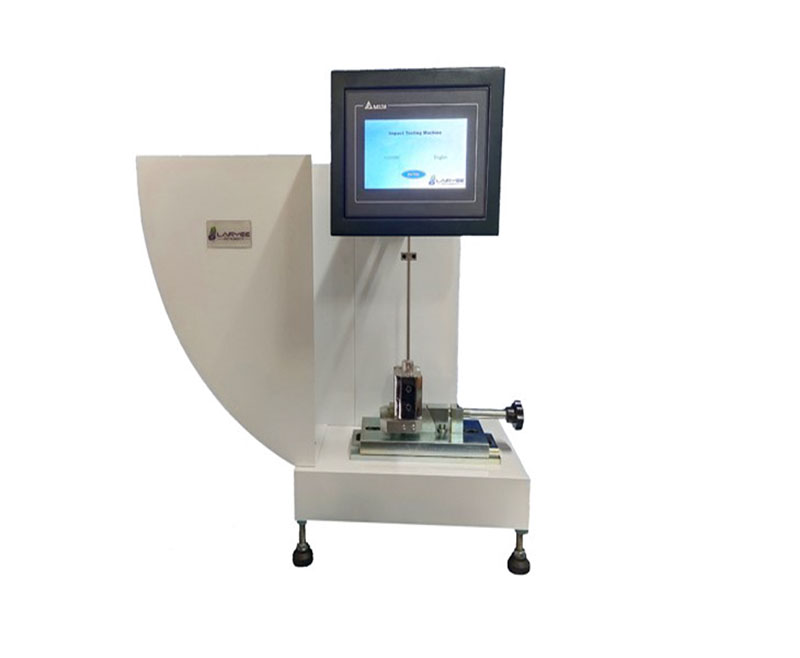

Model: ZIT2205/ZIT2222
Application:
IZOD (cantilever-beam) impact testing machine is used for determining the impact toughness of non-metallic materials such as rigid plastics, nylon, glass fiber reinforced plastic, pottery, cast stone, electrical apparatus plastic insulating material. This series of impact testing machines use LCD to display the test results, which makes the reading more intuitive and improves the accuracy of the impact testing machine. The technical parameters comply with the test standard of ISO180, ASTM256, GB / T1843, GB / T2611 and JB / T 8761.
Specification:
Model | ZIT2205 | ZIT2222 |
Impact energy | 1J, 2.75J, 5.5J | 11J, 22J |
Accuracy | 1% | |
Impact speed | 3.5m/s 3.5 | |
Pendulum moment | Pd1=0.53590Nm / Pd2.75=1.47372 Nm Pd5.5=2.94744Nm / Pd11=5.8949 Nm / Pd22=11.7898 Nm | |
Raising angle | 150° | |
Round angle radius of striking edge | R=0.8mm R=0.8mm | |
Sample support span | 10mm,12.7mm 10,12.7 | |
Impact center distance | 335mm 335mm | |
Sample notch:
A type notch 45°±1°, notch bottom radius R=0.25±0.05mm
B type notch: 45°±1°, notch bottom radius R=1.00±0.05mm
Sample type | Length(mm) | Width(mm) | Thickness(mm) |
1 | 80±2 | 10.0±0.2 | 4.0±0.2 |
2 | 63.5±2 | 12.7±0.2 | 12.7±0.2 |
3 | 63.5±2 | 12.7±2 | 6.4±2 |
4 | 63.5±2 | 12.7±2 | 3.2±2 |
