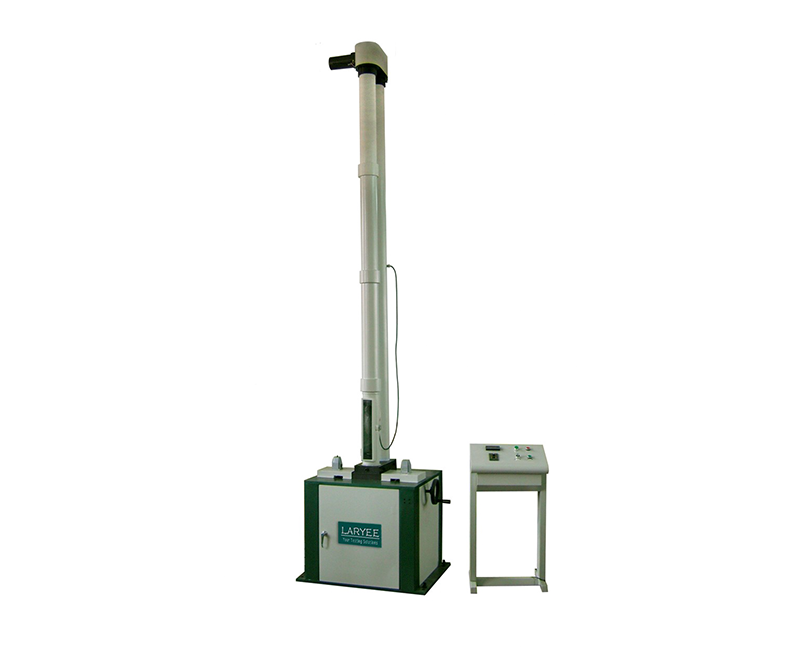

Model: FIT12300
Application:
This machine is widely used for the testing of impact strength test of plastic pipe materials and pipe components, and also suitable for the external loads impact strength test of plastic board, glass fiber reinforced plastic and kinds of Hard non-metal material.The machine can fulfill the test standard of ISO3127, ISO 4422, ISO3633, EN744, EN1411. It is an ideal instrument for quality inspection in construction industry, manufacturer, chemical industry and university.
Specification:
Max Impact energy: 300J
Striker weight(kg): 0.5, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.2, 4.0, 5.0, 6.3, 8.0, 10.0, 12.5, 16.0
Drop height: 0-2000mm(can be customized)
Hammer lift speed: 0-40mm/s
Diameter of the specimen: diameter 10-400mm (Optional diameter 10-630mm)
Striker type: D25, D90( SR5,SR10,SR30 can be customized)
Controller : PLC Indicator: LCD text
Power supply: 1P 220V, 50/60Hz
Remarks: Other kinds of striker weights and types are optional.
