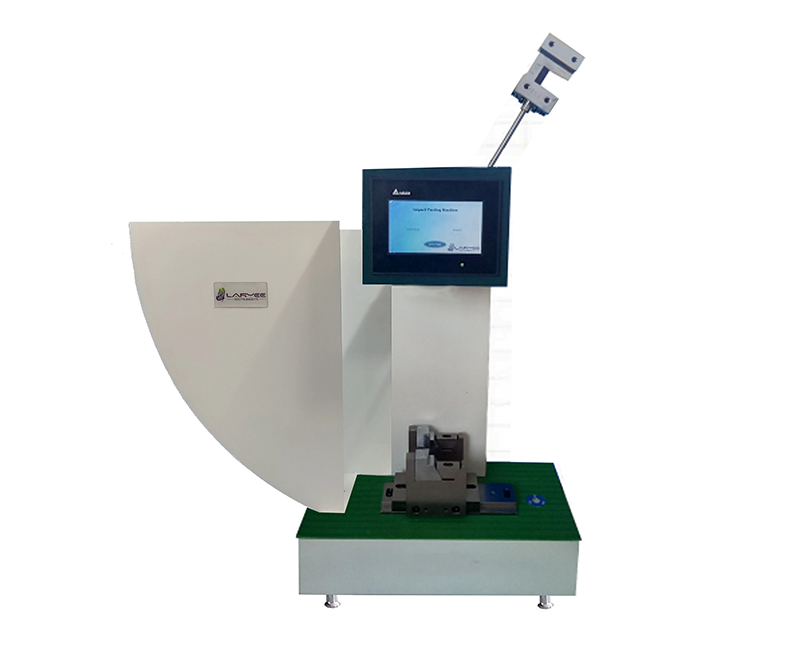

Digital Izod and Charpy Impact Testing Machine

Model: CZT3250

Digital Izod and Charpy Impact Testing Machine

Application:

This machine adopts the technology of photoelectric encoder to examine angle, the whole digital measures the material absorption energy and impact intensity of the material in the course of breaking and possess intact energy and lose detection and revision function. High precision and stability, large test range. The tester is a kind of whole digital impact testing machine.By changing the weight at the end of pendulum it can get many kinds of test energy .Used for determining the impact toughness of nonmetallic materials such as rigid plastics, nylon, fiberglass reinforced plastic,pottery, rubber,cast stone, electrical apparatus plastic insulating materials.


Specification:

Model

CZT3250

Impact method

Charpy

Izod

Impact energy(J)

7.5J, 15J, 25J, 50J

2.75J,5.5J, 11J, 22J

Energy accuracy

0.5%

Impact speed(m/s)

3.8

3.5

Pendulum moment

Pd7.5=4.0192Nm / Pd15=8.0385Nm

Pd25=13.397Nm / Pd50=26.795Nm

Pd2.75=1.47372Nm / Pd5.5=2.94744Nm

Pd11=5.8949 Nm / Pd22=11.7898Nm

Impact center distance

395mm

335mm

Raising angle

                                                                   150°

Round angle radius

R=2mm±0.5mm

R=0.8mm±0.2mm

Power supply

1Phase~220v,50/60Hz

Dimension&Weight

550x350x850mm  160kg
