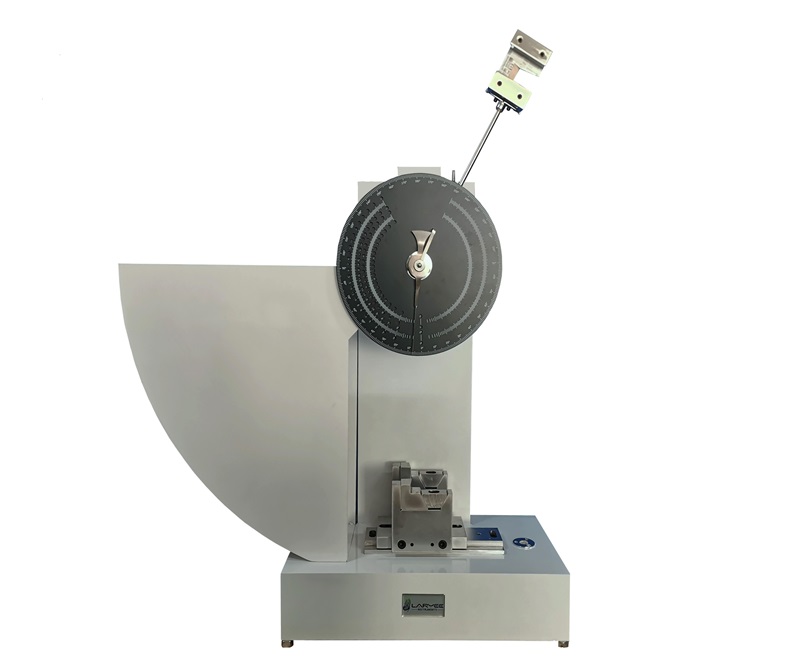

Charpy Impact Testing Machine

Model: CIT2105/CIT2150

Application:

Charpy (simple-beam) impact testing machine is used for determining the anti-impact capability of non-metallic materials such as rigid plastics, nylon, glass fiber reinforced plastic, pottery, cast stone, electrical apparatus plastic insulating material.

This dial indicating model can be operated easily and without power supply. It is essential testing instruments for university lab, college, Research Institution, quality testing section and industrial process. Calibrated according to ISO13802.Can do test according to ISO179, ISO 9854.

Inquire Now Next Product

Video:

Specification:

Model	CIT2105	CIT2150
Impact energy	1J, 2J, 4J, 5J	7.5J, 15J, 25J, 50J
Accuracy	1%
Impact speed	2.9m/s	3.8m/s
Pendulum moment	Pd1.0=0.5359Nm / Pd2.0=1.0718Nm Pd4.0=2.14359Nm / Pd5.0=2.67949Nm	Pd7.5=4.0192Nm / Pd15=8.0385Nm Pd25=13.397Nm / Pd50=26.795Nm
Raising angle	150°
Impact center distance	230mm	395mm
Sample support span	40mm, 62mm, 70mm
Dimension	600x450x1300mm	650x500x1500mm
Weight	85kg	120kg

Remarks:other span size of sample support jaws as optional accessories as per relevant test tandard by order.

For example:18,24 as per ISO 179
