Model: CIT2205/CIT2250
Application:

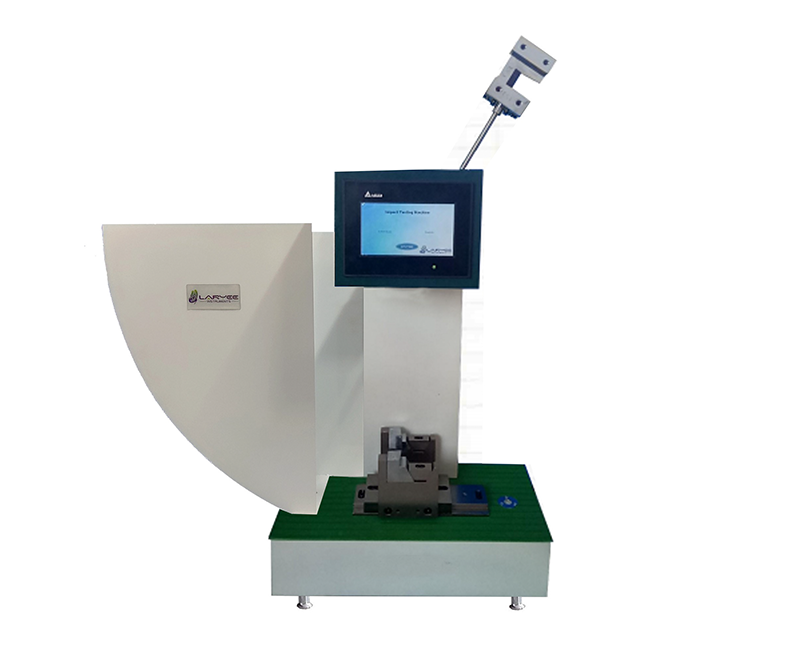

CIT Charpy Impact Testing Machine is mainly used for determining the impact toughness of nonmetallic materials such as rigid plastics, nylon, glass fiber reinforced plastic, pottery, cast stone, electrical apparatus plastic insulating material. According to ISO179 and ISO9854 test standards. They are essential testing instruments for quality testing section, university, college, research institution and industrial process.Calibrated according to ISO 13802. Can do test according to ISO179, ISO9854
Features:
Pendulum impact is realized as automatically by control button.
CIT22 series are PLC and digital LCD indicate and control.
Key Specification:
Model | CIT2205 | CIT2250 |
Impact energy(J) | 1, 2, 4, 5 | 7.5, 15, 25, 50 |
Energy accuracy | 0.5% | |
Impact speed(m/s) | 2.9 | 3.8 |
Pendulum moment | Pd1.0=0.5359Nm / Pd2.0=1.0718Nm Pd4.0=2.14359Nm / Pd5.0=2.67949Nm | Pd7.5=4.0192Nm/ Pd15=8.0385 Nm Pd25=13.397Nm/ Pd50=26.795 Nm |
Reading resolution9（J） | 0.001 | |
Raising angle | 150° | |
Sample support span(mm) | 40, 62, 70 | 40, 62, 70 |
Impact center distance | 230mm | 395mm |
