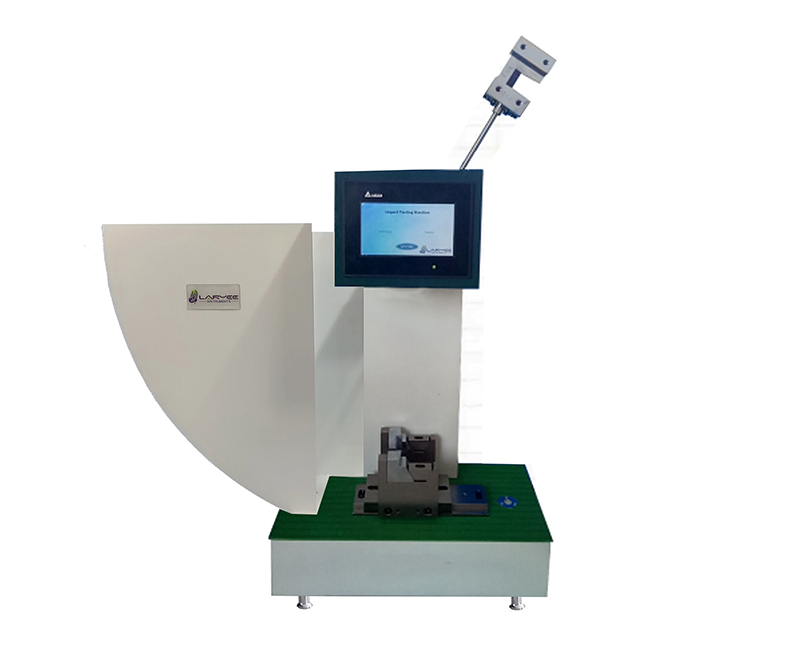

Digital Charpy Impact Testing Machine CIT2225

Model: CIT2225

Application:

Charpy (simple-beam) impact testing machine is used for determining the impact toughness of non-metallic materials such as rigid plastics, nylon, glass fiber reinforced plastic, pottery, cast stone, electrical apparatus plastic insulating material. This model is PLC control and digital LCD touch screen display. It is essential testing instruments for university lab, college, research Institution, quality testing section and industrial process. Calibrated according to ISO 13802. Can do test according to ISO 180, ASTM D256.

Inquire Now Next Product

Specification:

Model	CIT2225
Impact energy	7.5J, 15J, 25J
Accuracy	0.5%
Impact speed	3.8m/s
Pendulum moment	Pd7.5=4.0192Nm / Pd15=8.0385Nm / Pd25=13.397Nm
Raising angle	150°
Impact center distance	395mm
Sample support span	40mm, 62mm, 70mm
Power supply	1 Phase, 220V, 50Hz

Remarks: other span size of sample support jaws as optional accessories as per relevant test standard by order.
