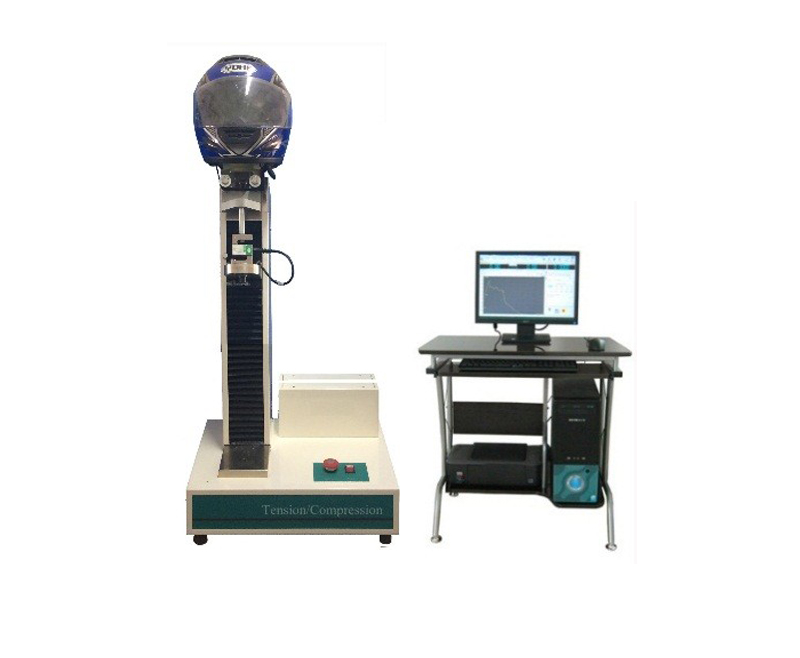

Static Chin Strap Testing Machine

Model: T002

Application

The equipment is mainly used to test the tensile strength performance of the helmet strap, and can control and measure the loading and displacement in the test. Conform to standard EN13087, GB811: 2010 and QCVN 02: 2008/BKHCN. It is widely used in the domestic and foreign helmet manufacturing industry and safety supervision and testing department

Inquire Now Next Product

Parameter

Model	T002
Max. Load	1000N
Load accuracy	1%
Displacement resolution	0.01mm
Load increasing speed	0-500N/S ( adjustable)
Load keep time	0-60分钟
Standard procedure	From preload to test load 30 second. And keeping 2 minutes（adjustable）
Test space	400mm
Head form	Size C (other size can be order )
Tension Fork roller	Diameter 25mm and distance in 75mm
Power Supply	1Phase, 220V, 50Hz
Examples of test procedures
QCVN standard	45N preload and 500N load test (with Helmets have circumference >500 mm) 25N preload and 300N load test (with Helmets have circumference ≤ 500 mm)
GB 811-2010 standard	23N preload and 136N load test (class A) 15N preload and 90N load test (class B)

Features

1. Full Computer loop control the preload and increasing load of test, the loading precision is less than 1%.

2. Preload and testing load can be set from 0 to 1000N.

3. Load increasing time and keeping time can be set in the software.

4. Test result curve real time showing, printing and test result data base supported.

5. With PU resin head mold C, all standard regular head form can be ordered.

6. Loading by Servo motor, displacement measured by optical encoder.

7. No manually, high precision automatic control

8. High stiffness machine frame.

Standard Accessories and Parts:

1. Tension testing machine

3. Printer

5. Head form C

7. Tool

2. PC

4. Control software and card

6. 1000N S type Load cell

Optional Accessories:

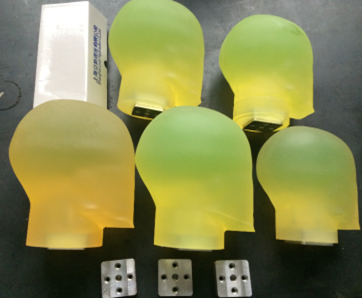

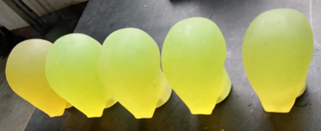

Other size head form（PU）

STATIC CHIN STRAP TESTING MACHINE
