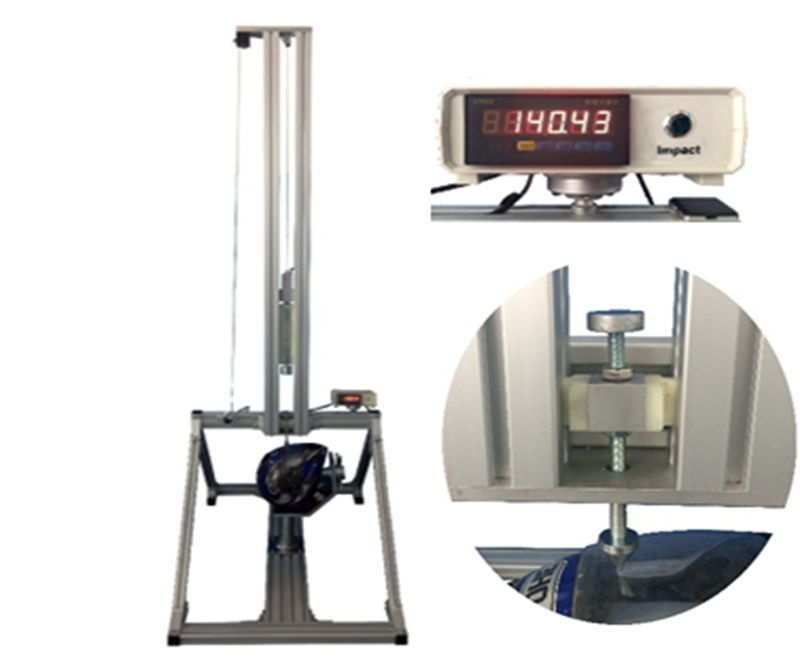

Model: T003
Application
The equipment is used to detect the penetration resistance of the motorcycle helmet goggles.
Design and manufacture conform to GB811: 2010 、 QCVN02:2008/BKHCN、EN 13087：2000 and ECE R22 standards. It is widely used in helmet manufacturing industry and safety supervision and testing department.

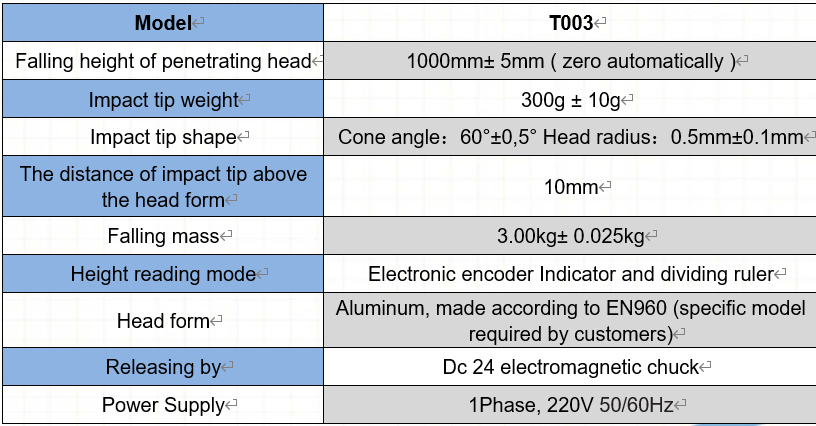

Parameter
Character
1. Equipped with sturdy and smooth slideway;
2. Frame is made of aluminum structure material and steel base;
3. Button controls the penetration cone release;
4. Manual control of the rise and fall of the penetrating cone;
5. The accuracy is highly displayed to 1mm;
Standard Accessories and Parts
1. Structure Aluminum 4040 and 4080
2. Digital display controller
3. Head form stand
4. Dividing ruler
5. Soft steel wire
6. Pulley
7. Hand wheel
8. Aluminum head
9.Penetrate carrier with electromagnetic
10. Impact Tip and Mass
11. Installation tool
Optional Accessories

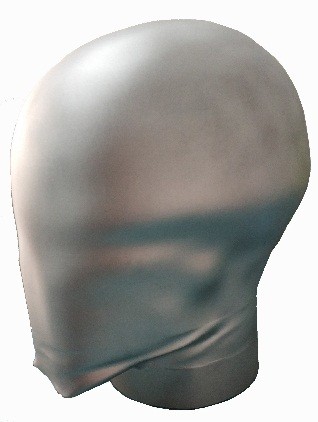

EN960 other models of head (aluminum) :
