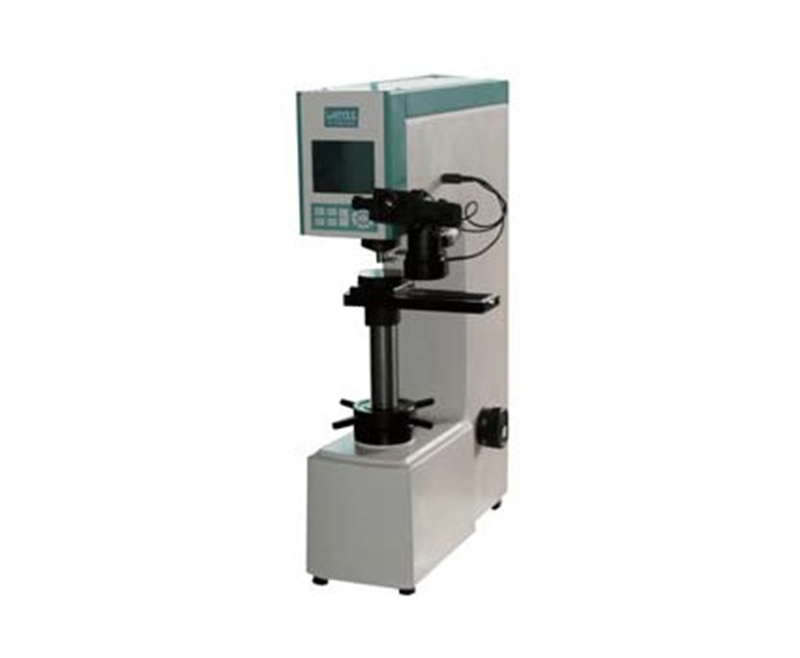

Model: HBRVS-187.5
Introduction
HBRVS-187.5 is a high precision, easy operation, high sensitivity metal hardness instrument which is combine the Rockwell, Brinell, and Vickers hardness principle widely used in factory workshops, laboratories, universities and research institutions.
※ Large LCD and Microchip control system, makes hardness testing be automatically operated.
※ Built-in printer records the main technical data of the entire testing process.
※ Adopting manual lifting platform, it completely achieves the realization of the test force imposing, removing,hardness value direct showing and other automated operation.
※ High accuracy avoiding the human operational error, is a mechanical and electrical integration also high-tech and advanced hardness tester.
Specification
| Model | HBRVS-187.5 |
| Rockwell Test Force | 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
| Brinell Test Force | 30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N) |
| Vickers Test Force | 30kgf (294.2N), 100kgf (980.7N) |
| Hardness Reading | LCD Screen Display |
| Test Scale | HRA, HRBW, HRC, HRD, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HV30, HV100 |
| Conversion Scale | HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW |
| Magnification | Brinell: 37.5×, Vickers: 75× |
| Min. Measuring Unit | Brinell: 0.5μm, Vickers: 0.25μm |
| Hardness Resolution | Rockwell: 0.1HR, Brinell: 0.1HBW, Vickers: 0.1HV |
| Dwell Time | 0~60s |
| Data Output | Built-in Printer, RS232 Interface |
| Max. Height of Specimen | Rockwell: 185mm, Brinell: 100mm, Vickers: 115mm |
| Throat | 165mm |
| Power Supply | AC220V, 50Hz |
