Model:
Introduction

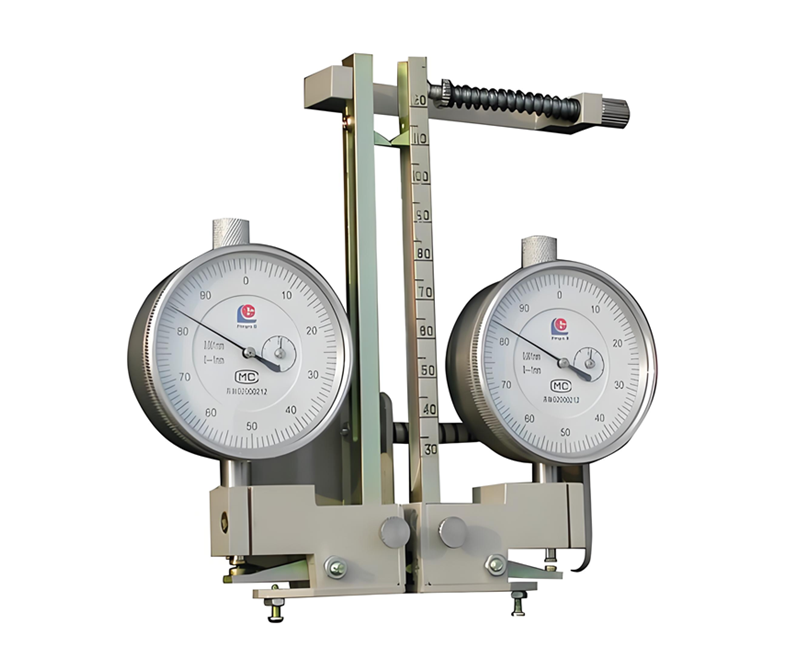

This instrument is used to measure the deformation of metal and no-metal material when doing the mechanical property test. It can be used as part instrument of all kinds of testing machine to test the sample strain, elasticity modulus and deformation control testing. Also this extensometer has much advantage to test all kinds of deformed steel bar. The instrument adopts full mechanical system. It is easy to both combine with testing machine and use separately. The mech extensometer can be equipped with the centigrade meter and micrometer optionally. It can fulfill different deformation requirements in range and accuracy.
Specification
lSample Measuring range: diameter Ø0-25mm or thickness 0-25mm
lGauge length: 30-80mm; 30-120mm; 30-250mm (Optional)
lIndicator selection 1: Centigrade Meter
Extension range: 0-3mm
Accuracy: 0.01mm
lIndicator selection 2: Micrometer
Extension range: 0-1mm
Accuracy: 0.001mm
lWeight: 2kg
