Model: GWB-200JA
Application:

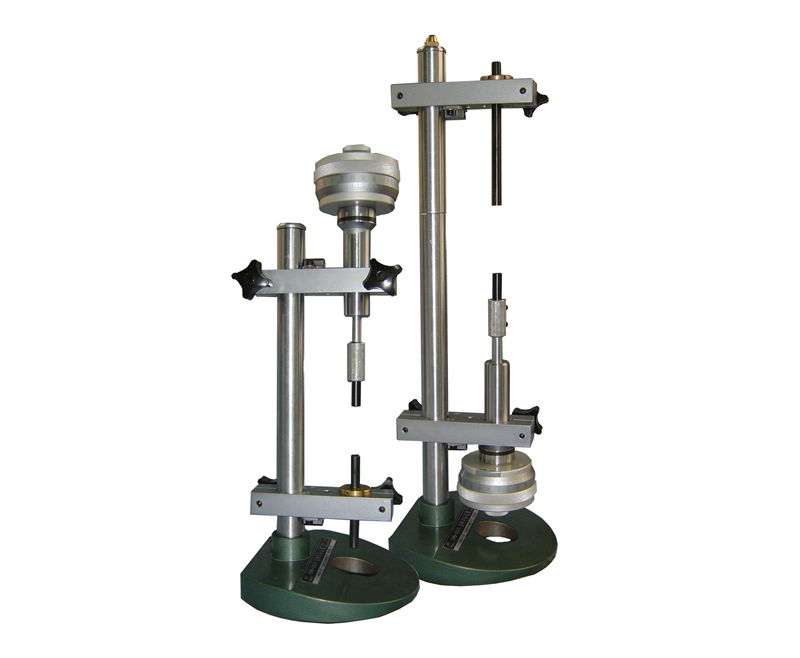

GWB-200JA Calibration instrument for extensometer is a sort of pure mechanical instrument to determine the displacement, deformation, or extension. It has high precision. According to JJG762-92 V.R. of extensometer, it is specially used for the calibration of various extensometers, and also widely used for the verification of displacement sensors and dial gauges (reading in 0.01mm and 0.001mm). This instrument can custom-tailor and lengthen the gauge length but with changeless performance and precision.
Specification
Gauge length range L max. : 500mm
Diameter of arms mounting hole: φ10mm; φ28mm

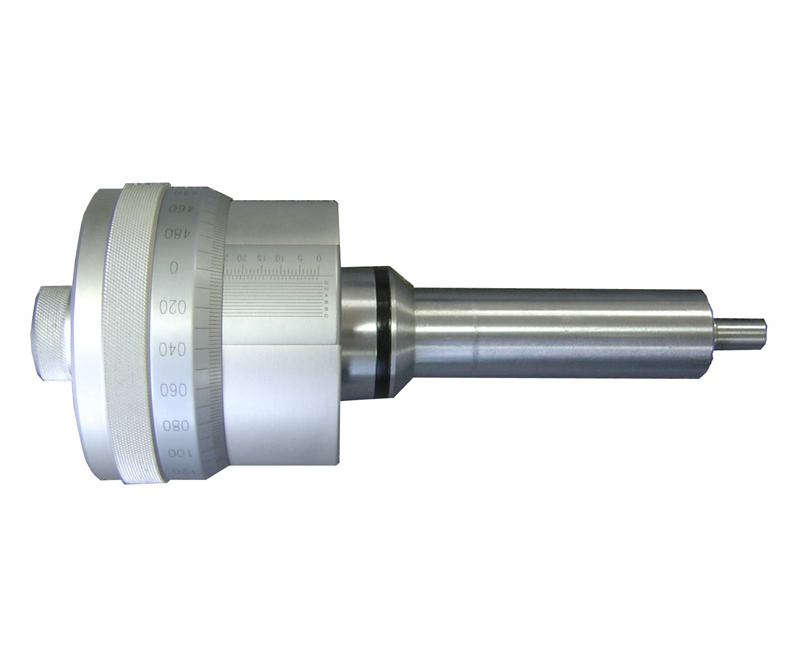

Axial scale of differential gauge inner readout: 0.5mm/div
Vernier scale of differential gauge inner readout: 0.0002mm/div
Circumference scale of differential gauge outer readout: 002 mm/div
Measuring range less than 0.5mm≤0.5um(absolute error)
Measuring range more than 0.5mm≤0.10%(points relative error)

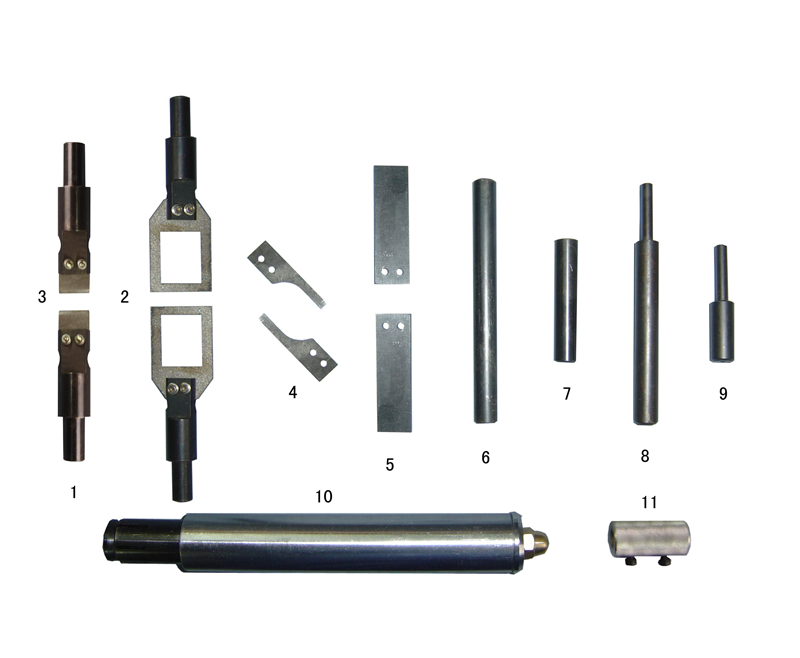

Measurement Accessories:
1.Two compose calibrate rods;
2.Two horizontal calibrate jigs(Optional);
3.Four blades;
4.Two horizontal specimens;
5.Two board specimens;
6.Oneφ10×100 reducer rod;
7.Oneφ10×50 reducer rod;
8.Oneφ10/φ5×100 reducer rod;
9.Oneφ10/φ5×50 reducer rod;
10.One 170mm extend pole;
11.One connecting sleeve;
12.Install tools.
