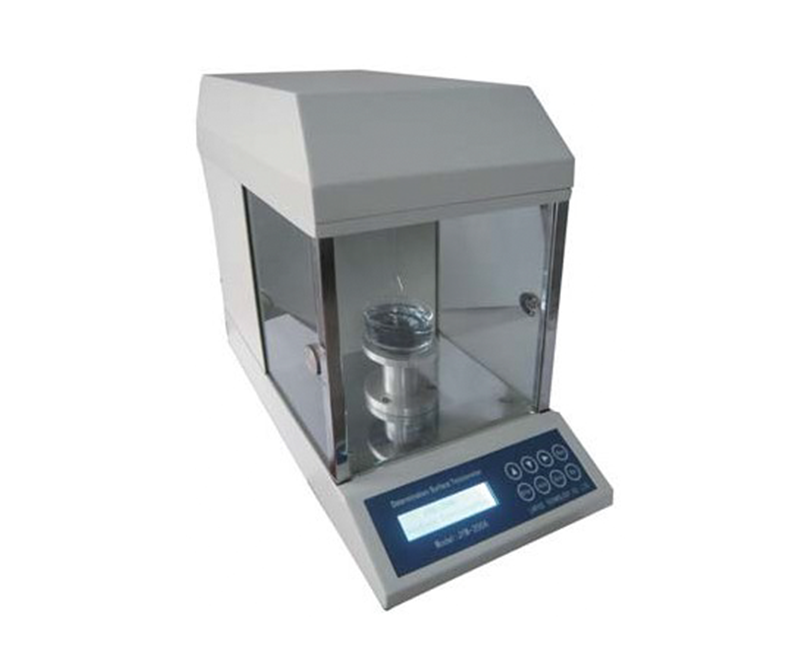

Model: JYW-200A
Application:
The tensiometer is mainly to test surface tension of all kinds of liquids just like water, oil liquid chemicals and so on. It is widely used in the petroleum, chemical industry, research department and university. This instrument is composed by platinum ring, torsion wire, differential transformer and data procession system according to the ISO 1409 and ASTM D971 standard.
Video
Features:
v Microchip controls the testing procedures
v LCD value set and result display
v Revise results calculated automatically
v Calibration easily and automatically
Specification:
Model | JYW-200A |
Test range | 0-200.0 mN/m |
Resolution | 0.1 mN/m |
Accuracy | <±2% |
Sample stroke | 25mm |
Sample speed | 15 mm/min±2 mm/min |
PT ring radius | 0.3 mm |
PT ring perimeter | 60mm |
Sample cup dia. | 56 mm |
Sample cup volume | 60 ml |
Dimension | 400x220mmx350mm |
Weight | 14kg |
Power | 1P~220V/110V,50/60Hz |
