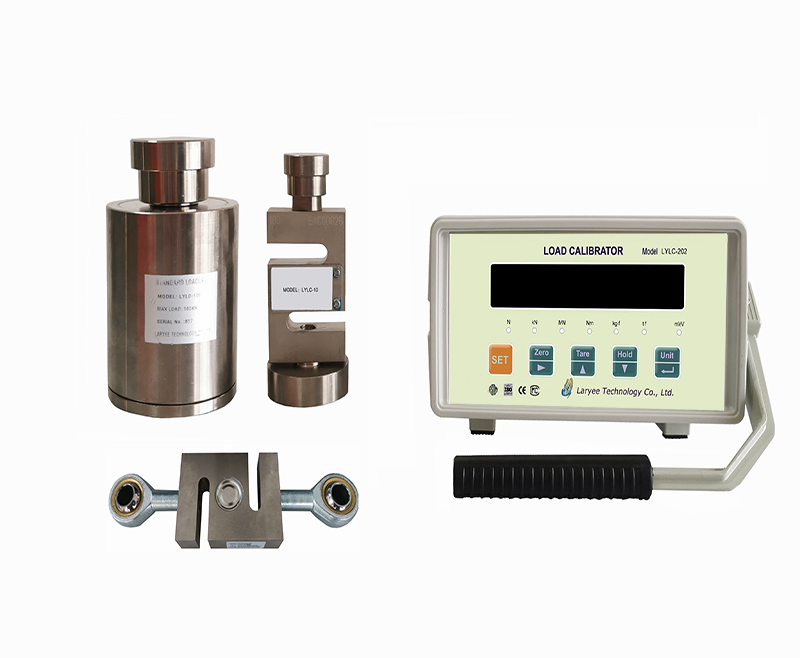

Model: LYLC-202
Application:
Load calibrator is used to supply the standard load value for all kinds of testing instrument, machine, balance, hydraulic load system. This instrument is combined with a high accuracy digital load cell and a high sensitive digital indicator. It can be used to calibrate or verify the instruments and machines which load accuracy is 0.3%, 0.5% and 1% or more. The load calibrator can equip load ranges from 0.1kN to 5000kN.
Video
Feature:
1.Digital Load Cell, which is more stable and accurate, avoids the influence from the cable resistance.
2.Non-Chanel Technology,One indicator can be equipped with load cells as many as you need. The indicator can show the load cell information directly when it connects digital load cell.
3.Units of the load selectable and changeable in: N, kN, MN, kgf, lbf, tf
4.Testing range: 2%~100% of measuring range of each load cell
5.Accuracy: 0.3%（0.1%, as special order). Option: Class 0.5 or Class 1.0 as ISO 376 standard
6.Power supply: 220V-50 Hz,DC-5V,USB Power Bank
7.Accessories option: Load calibration Software and RS232 Cable to connect to PC
Load Cell Selection:
| Load Cell | 5KN | 10KN | 30KN | 50KN | 100KN | 300KN | 600KN | 1000KN | 2000KN | 3000KN | 5000KN |
| Using Type | T or C | T or C | T or C | T or C | T or C | T or C | C | C | C | C | C |
Remarks: T—Tension; C—Compression. Model LYLC-202 (Indicator) and LYLC-xxx (with X is Max range of each Load cell)
Software Instruction:
LYLC RS3.0 is a calibration software of the standard dynamometer. After the standard dynamometer is connected with the computer of the testing machine and the software is installed on the computer. The software can make the calibration process more convenient and fast, Recode and display the Real-time force values of standard dynamometers within 30 seconds and the time and the calibration data can be saved in the computer, and the calibration report can be printed.
