Model: CM25 Series
Application:

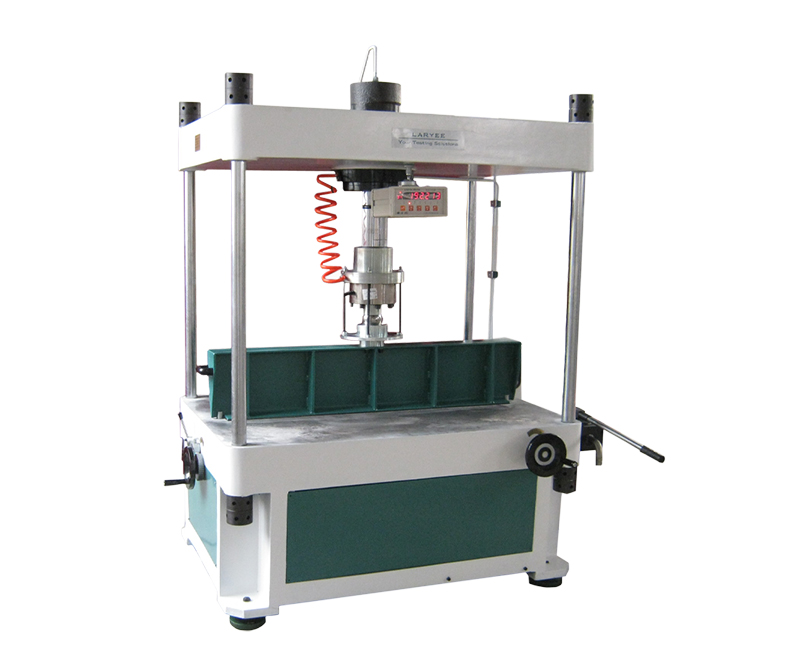

CM25xx series load calibration machine is combined the load calibration function and loading mechanism. There are main and fine adjusting two grades loading device. It can do the force compensation when accurate loading or load keeping. The load can keep more than 60s in 0.15% accuracy by a skilled operator. The machine is widely used in testing or calibrating all kinds of load cell, balance, wheel load weigher or scale. It also can do all kinds of big structure part load test.
Key Specification:
lLoad capacity: 20000kg (two weigher,each max 10000kg)
lAccuracy: 0.15%
lLoad test: By load cell
lLoad display: Digital by unit change kg, N, KN, MN, lbf and tf.
lLoad method: By hand pump
lCalibrate position: One or two weigher in one test
lPower supply: AC 110/220V 60/50HZ
lDimension: (L)1450×(W)1000×(H)1750(mm)
lWeight: 1250KG
