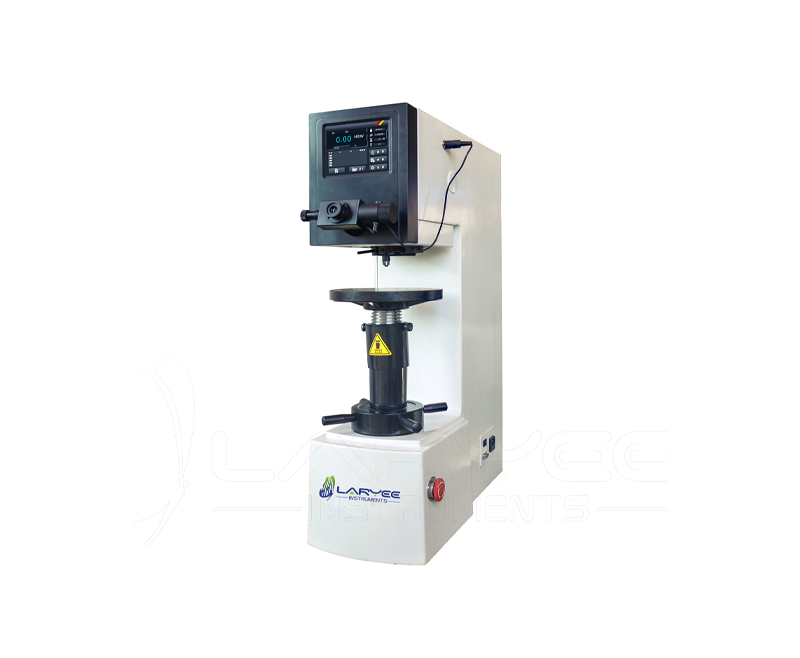

Digital Brinell Hardness Tester HBS-3000

Model: HBS-3000

Application

This tester is a digital control and reading Brinell hardness tester.The indentationimpression can be directly measured on the instrument through microscope and LCD screen indicates the diameter,the hardness value and 17different hardness scales for example HR,HV tables as well as the HBW range under the present presetting.

This tester is a digital control and reading Brinell hardness tester.The indentation impression can be directly measured on the instrument through microscope and LCD screen indicates the diameter,the hardness value and 17different hardness scales for example HR,HV tables as well as the HBW range under the present presetting.

Inquire Now Next Product

Features:

u Test force loading and unload motorized without heavy weight

u Adopts electronic auto loading Use 0.5% accuracy load sensor to feedback

u Microchip control system，automatically compensate the test force lost during testing

u Test force and load dwell time can be set on the touch-keyboard, reliable repetition, precise reading, and easy operation.

Key specifications:

Model	HBS-3000
Test force	612.9N(62.5kgf), 980N(100kgf), 1226N(125kgf), 187.5kgf（1839N）250kgf（2452N） 500kgf(4903N),750kgf(7355)9800N(1000kgf),14700N(1500kgf), 29400N(3000kgf)
Hardness measuring range	3.18～653HBW
Hardness Resolution	0.01HBW
Data Output	Built-in Printer, RS232 Interface
Microscope	20× Digital Measuring Eyepiece, 1× Objective
Effective Field of View	6mm
Min. Measuring Unit	0.001mm
Dwell Time	0~60s
Max. Height of Specimen	205
Throat	130mm
Power Supply	AC220V，50Hz
Execute Standard	ISO 6506，ASTM E10，JIS Z2243，GB/T 231.2
