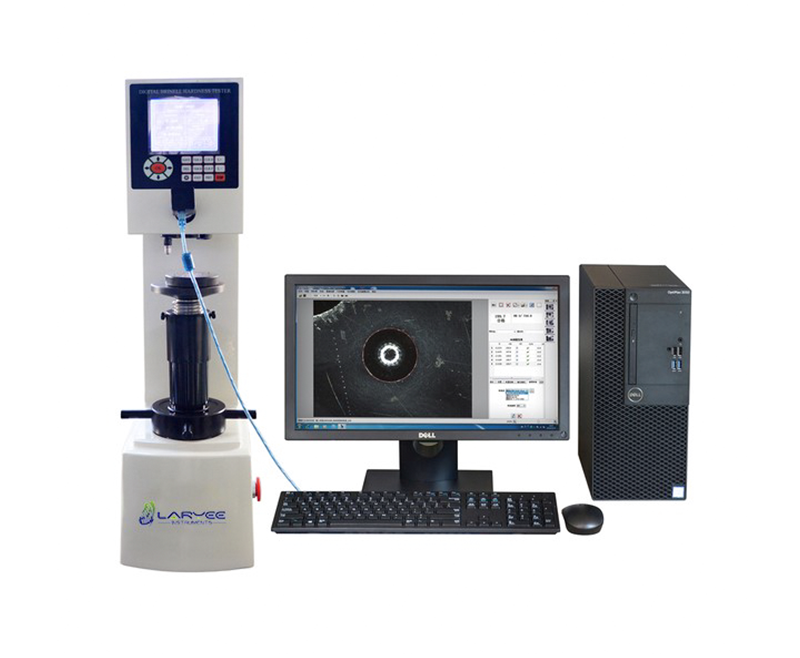

Brinell CCD Image Automatic Measuring System

Model: Brinell CCD Image Automatic Measuring System

Introduction

CCD Image automatic measuring system combines the computer software and the hardness tester, the whole test procedure is finished through the easy operation of keyboard and mouse click, which avoids the visual fatigue and man-made error and can test different kinds of hardness. It is equipped with a CCD camera easy to observe, and can directly observe and measure the indentation on the display. For test conditions of setting, the results can be clearly and conveniently operated and displayed. It can automatically carry out the calculation of infiltration depth, statistical calculations, conversion, display curve, judging whether qualified and save the result as WORD or EXCEL documents.

Inquire Now Next Product

Functions

1.Basic function: include all functions of image processing and measurement system, such as image capture, calibration, image processing, geometric measurement, annotation, photo album management and fixed times print etc;

2.Automatic measurement: Automatically capture the indentation and measure the diameter and calculate the corresponding value of Brinell hardness;

3. Hardness conversion: The system can convert the measured Brinell hardness value HB to other hardness value such as HV, HR etc;

4.Data statistics: The system can automatically calculate the average value, variance and other statistical value of the hardness;

5.Standard exceeding alarm: Automatic mark the abnormal value, when the hardness exceeds the specified value, it automatically alarms;

6.Test report: Automatically generate the report of WORD or EXCEL format, the report templates can be modified by the user.

7.Easy to use: Click on the interface button or press the camera button or press the run button to automatically complete all the work; if need manual measurement or modify the results, just drag the mouse;

8.Strong noise resistance: The advanced and reliable image recognition technology can handle the indentation recognition on the surface of the complex sample, two kinds of automatic measurement mode to deal with the extreme situation;

9.Automatic calibration: The system has provided a calibration function, convenient for the indentation size measurement and may calibrate at any time. With a calibration grid, the system can automatically implement full calibration for calibration grid intersection points to eliminate measurement error caused by lens distortion.

Standard Configuration

1. Computer (CPU: I3, Memory: 4G, HD: 500G, 19 inch LCD screen) 1 set

2. Ink Jet Printer 1 set

3. CCD Camera (1.30 Million Pixel) 1 set

4. USB Key 1 pc

5. Measuring Software 1 pc

Products Categories

Our Knowledgeable Team is Here to Help

Our team is composed of experienced experts who are eager to help you find a solution that suits your business.

Get Instant Quote +

Related Products

Brinell Hardness Tester

Model:

Brinell Hardness Tester is a lab instrument to measure the hardness value of all kinds of metals according to Brinell hardness principle ASTM E10 and ISO 6506.

View More +
Digital Brinell Hardness Tester HBS-3000

Model:

This tester is a digital control and reading Brinell hardness tester.The indentation impression can be directly measured on the instrument through microscope and LCD screen indicates the diameter

View More +
Digital Display Low Load Brinell Hardness Tester

Model:

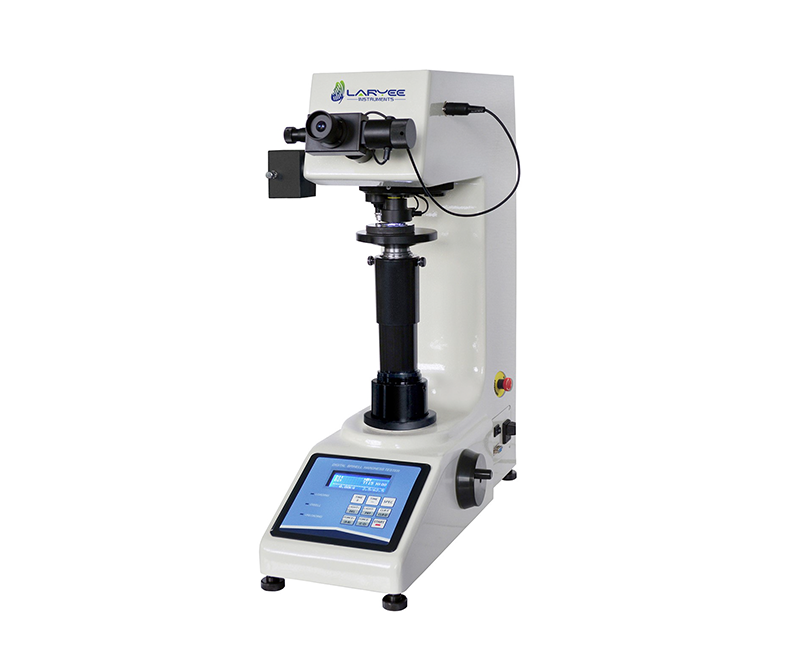

601MHB is an ideal product for testing small load Brinell hardness. This instrument has 8 levels of test force, and 9 kinds of Brinell scales can be selected at will; With 5x And 10x Both sets of objective lenses can participate in the measurement;
