Deuteration is widely used in pharmaceutical research, isotopic labeling and advanced materials. However, conventional batch deuteration often faces practical challenges such as long reaction times, limited catalyst efficiency, mass-transfer limitations and difficulties in process scale-up.

To address these challenges, Laryee has explored a Raney nickel fixed-bed continuous-flow process, integrating catalytic deuterium exchange with continuous-flow technology to improve reaction efficiency and process controllability.

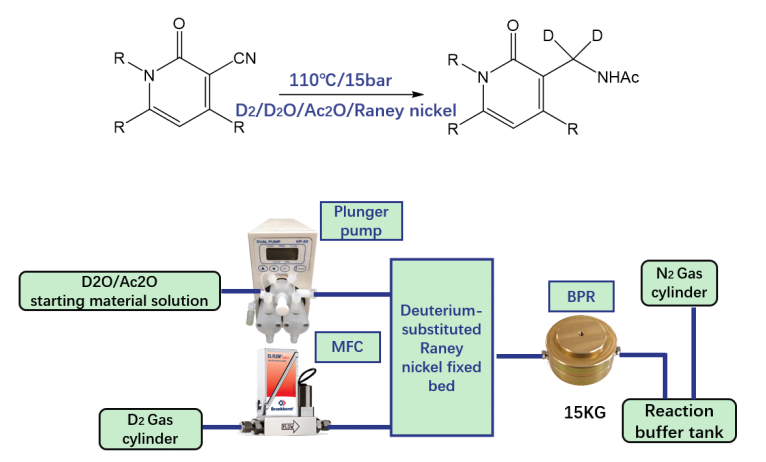

Figure 1:  Schematic of the Raney nickel fixed-bed continuous-flow deuteration system.

From Batch Reaction to Fixed-Bed Continuous Flow

In the continuous-flow system, the liquid reaction stream and deuterium source are continuously introduced into a reactor packed with Raney nickel catalyst.

The fixed-bed configuration increases gas-liquid-solid interfacial contact, promoting heat and mass transfer between the reaction mixture, deuterium source and catalyst. At the same time, the system enables precise control of key process parameters including temperature, pressure, flow rate and residence time.

Compared with conventional batch processing, this configuration provides a more controlled reaction environment while keeping the solid catalyst within the reactor.

Significant Reduction in Reaction Time

In Laryee's experimental evaluation, the conventional batch process required approximately 72 hours, while the Raney nickel fixed-bed continuous-flow process reduced the reaction time to less than 18 hours.

At the same time, deuterium incorporation above 90% was achieved, demonstrating that the continuous-flow approach can significantly shorten the reaction cycle while maintaining a high level of deuterium incorporation.

Why Continuous Flow Improves the Process

The performance improvement is not simply the result of replacing a batch reactor with a continuous reactor.

The combination of a Raney nickel fixed bed and continuous operation improves contact among the gas, liquid and solid phases. Continuous flow also facilitates the removal of reaction products and excess components from the reaction zone, helping maintain favorable reaction conditions throughout the process.

Together with controlled temperature, pressure and residence time, these characteristics provide a practical engineering basis for improving deuteration efficiency and process reproducibility.

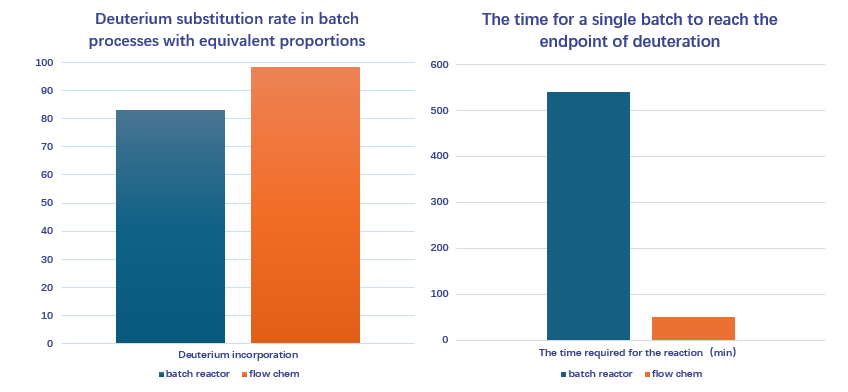

Figure 2:  Comparison of reaction time and deuterium incorporation between batch and continuous-flow deuteration.

From Process Development to Scale-Up

Another advantage of continuous processing is its potential for scale-up.

Instead of relying solely on larger batch reactors, production capacity can be increased through extended continuous operation and further optimization of flow conditions. The fixed-bed configuration keeps the catalyst inside the reactor, simplifying catalyst separation while providing a platform for evaluating catalyst performance over longer operating periods.

This approach has potential applications in areas such as pharmaceutical isotopic labeling and deuterated compounds for advanced materials, where reaction efficiency, process control and scalability are important considerations.

By combining catalytic chemistry with continuous-flow engineering, Laryee aims to provide more than laboratory equipment — supporting customers from process development and parameter optimization to reactor configuration and scale-up studies.
