From Product Selection to Process Understanding

The project began with an overseas distributor that found Laryee online while looking for a way to move from a conventional nitration approach toward continuous-flow process development. The customer had already reviewed Laryee’s catalogue and selected an initial system before contacting us.

Rather than proceeding directly with the requested model, our technical team reviewed the customer’s process requirements in greater detail. The originally selected CM-PG-M (CRT) platform is oriented toward photocatalytic applications and did not fully match the nitration process. Based on the reaction requirements provided by the customer, Laryee recommended a CM-D (HT)-based configuration as the more suitable development platform.

Why Continuous Flow for Highly Exothermic Nitration Development?

Nitration can involve strong heat release and therefore requires careful control of reaction conditions. For process-development work, a microflow approach offers a small reaction hold-up volume, efficient heat and mass transfer, and the ability to adjust operating parameters such as temperature, pressure, flow rate and residence time in a controlled manner.

For this project, the transparent microreactor also supports visual observation of the reaction process, helping engineers evaluate and optimize process conditions during development. The small internal volume can reduce reagent consumption during trials and limit the amount of reacting material present in the reactor at any one time.

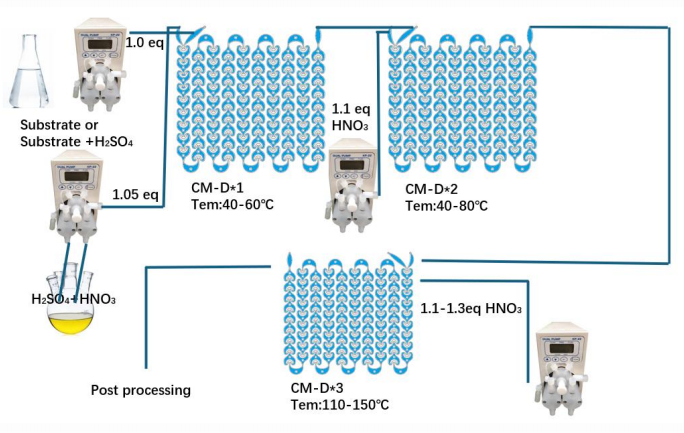

Figure 1. Example configuration of a modular continuous-flow process development system.

A Customized CM-D (HT) Process Development Configuration

The proposed solution is centered on the CM-D (HT) FlowChem platform and integrates the functions required for controlled continuous-flow development, including precision dosing, reaction-temperature control, pressure regulation and real-time process monitoring.

The CM-D control system can monitor and display pressure, temperature and flow-related parameters, manage the temperature-control system, provide abnormal-temperature and overpressure alarms, and support automatic cleaning and expandable temperature-control channels.

A corrosion-resistant back-pressure regulator can be incorporated to help maintain stable system pressure, while the high/low-temperature dynamic temperature-control unit provides the thermal conditions required by the microchannel reactor.

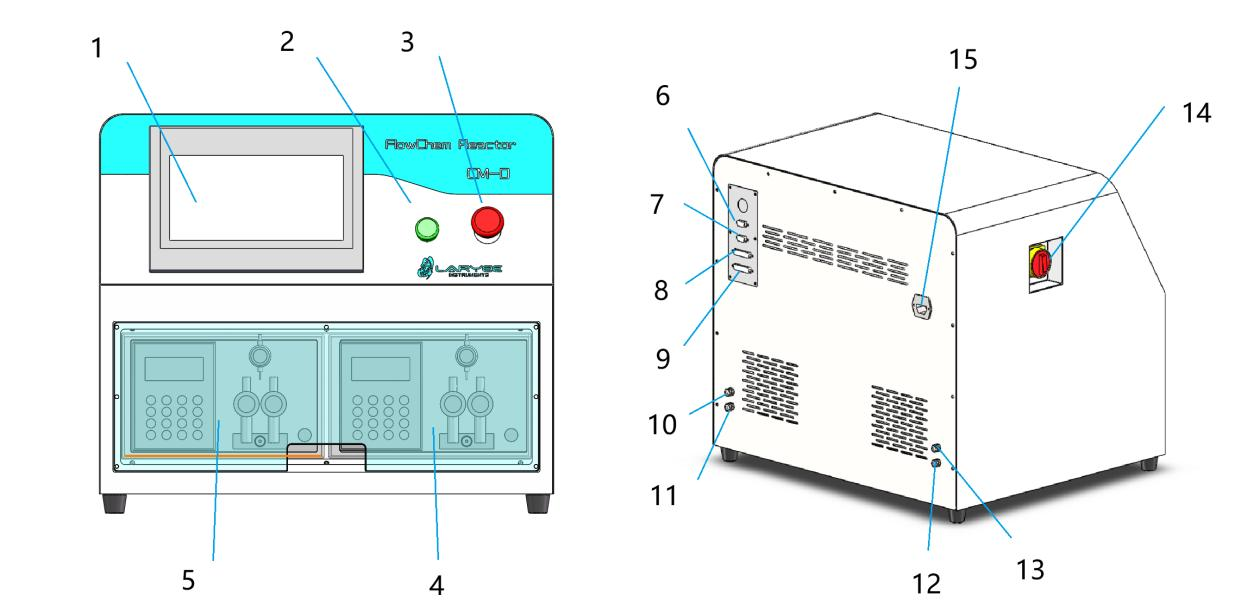

Figure 2. CM-D FlowChem control and dosing platform.

Designed for Process Development and Future Scale-Up

The value of this project lies not simply in supplying a standard instrument, but in matching the equipment configuration to the customer’s actual process. Laryee’s microflow systems are modular and can be configured around different reaction requirements, allowing process parameters to be explored at development scale and providing a technical basis for subsequent scale-up.

This project also provides a reference approach for future customers evaluating continuous-flow nitration: begin with the chemistry and operating requirements, determine the appropriate reactor and supporting modules, and then build the system around the process rather than selecting equipment solely from a catalogue.

Project Status

✓ Process requirements reviewed

✓ Customized configuration confirmed

✓ Equipment manufactured

✓ System shipped

✓ Customer-side validation pending

Discuss Your Continuous-Flow Application

If you are evaluating whether an existing batch process can be developed using continuous-flow technology, Laryee can review your process requirements and help identify an appropriate reactor configuration and supporting system.
